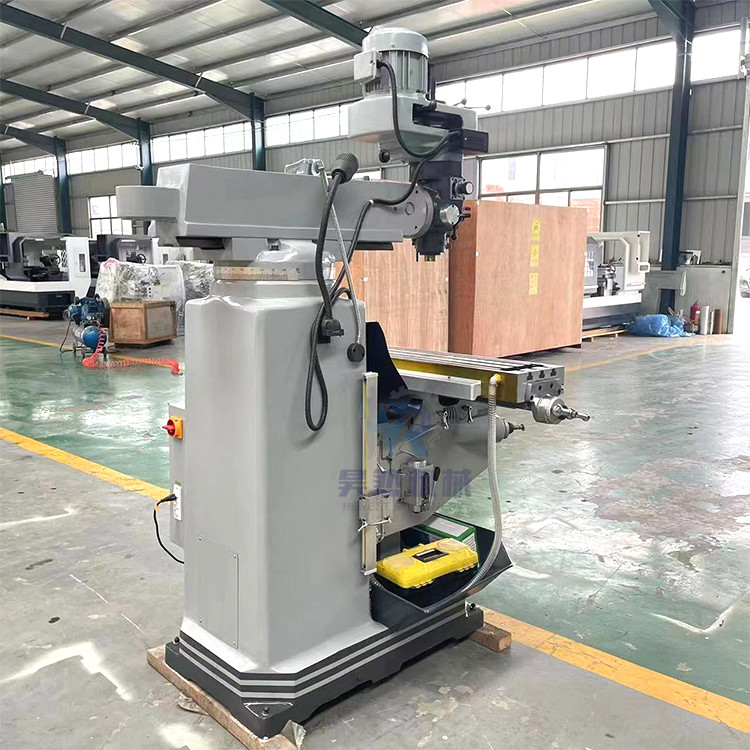

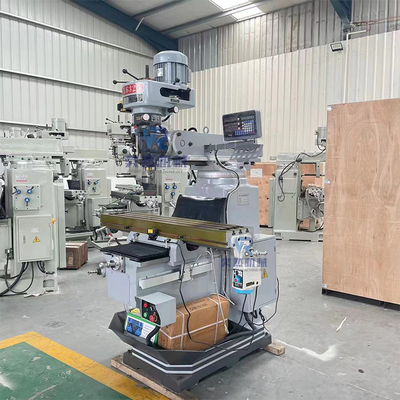

Vertical Turret Drilling Universal Milling Machine With Swivel Geared Head

Large Image : Vertical Turret Drilling Universal Milling Machine With Swivel Geared Head

Product Details:

Place of Origin:	china
Brand Name:	HR
Certification:	ceiso
Model Number:	X6325

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	USD2000-4000
Packaging Details:	wooden packing
Delivery Time:	30day
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	40set/month

Contact Now

Vertical Turret Drilling Universal Milling Machine With Swivel Geared Head

Description

NAME:	X6325 Universal Turret Milling Machine	Workbench Area:	1270*254
X Axis（mm）:	780-850	Y Axis（mm）:	380-420
Z Axis（mm）:	350-380	Head Voltage:	3HP / 2.2KW
Ramp Voltage:	1.1Kw	Net Weight（kg）:	1200
Highlight:	Vertical Turret Universal Milling Machine , Geared Head Universal Milling Machine , Turret geared head milling drilling machine

Vertical Turret Drilling Universal Milling Machine With Swivel Geared Head

The main performance characteristics:
1. M Hanna high strength cast iron, internal honeycomb rib structure, high rigidity, long service life.

2. Spindle adopts imported from Japan King combination diamond. After the quenching and tempering and frequency processing, after fine grinding with 4 imported bearings (other manufacturers spindle 3 bearing), ensure high quality and high precision.

3. Three shaft screw fine grinding with advanced phosphor bronze nut, durable.

4. Horizontal milling with 4 gear shaft speed (other manufacturers for the 2 gear shaft), a wide range of variable speed, torque.

Product Description

Specifications	unit	X6325
Table size	mm	254x1270 / 254x1370
Longitudinal travel	mm	850 / 950
Transverse travel	mm	420 / 400
Vertical travel	mm	420
T slot no. and size	mm	3x16
Ram travel	mm	470
Distance from spindle nose to table surface	mm	0-405
Spindle taper		standard: R8
Spindle taper		Optionl:ISO30/ISO40
Spindle travel	mm	127
Spindle speed	rpm	standard: (50HZ) 65-4500
Spindle speed	rpm	optional: (variable)65-4500
Auto quill feed	mm/rev	0.04/0.08/0.15
Spindle motor	kw	2.25
Head swivel		90°
Head tilting		45°
Weight	kg	1550

Company information

sample

Application:

The milling machine is a kind of universal light duty metal cutting machine,

Has two functions of vertical and horizontal milling, Milling medium, small parts of the plane, inclined plane, groove and spline etc..

Widely used in mechanical processing, mold, equipment, instrumentation and other industries.

Packaging＆Shipping

Packaging Details:

1. Outside package: Standard marine export plywood case.

2. Inner package: Stretchy film and plastic film for humidity. We can package according to your requests. Delivery Detail: Shipped in 20-30 working days after payment.

Certifications

All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product, please let us know. If you have any other specific requirements, please feel free to contact us. Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.

customer visiting

We welcome customers to visit the factory, we will have customers to visit the factory and customers online purchase feedback, through feedback learning experience, continuous progress, better service for you.Shandong Honest is willing to unremitting pursuit and efforts, hand in hand with merchants to create a brilliant future
