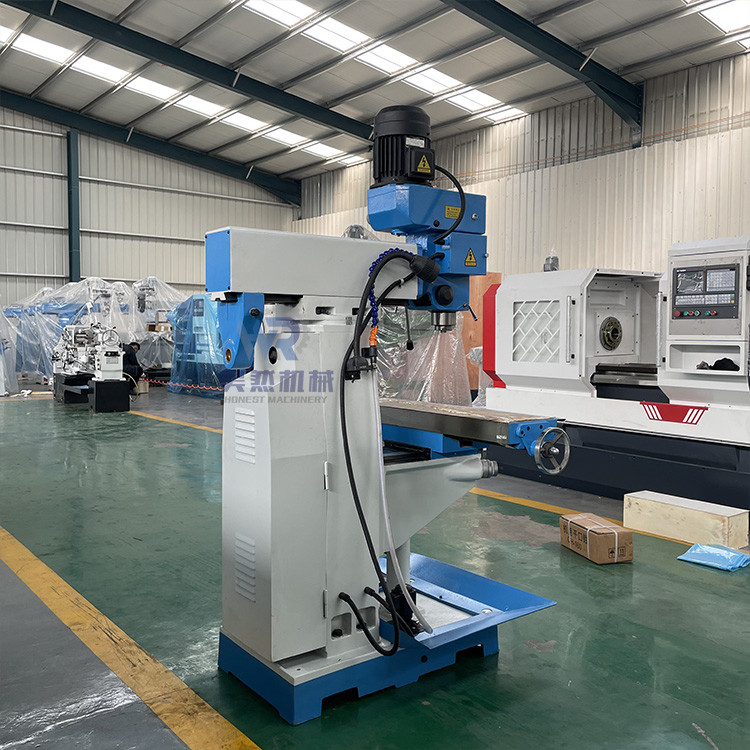

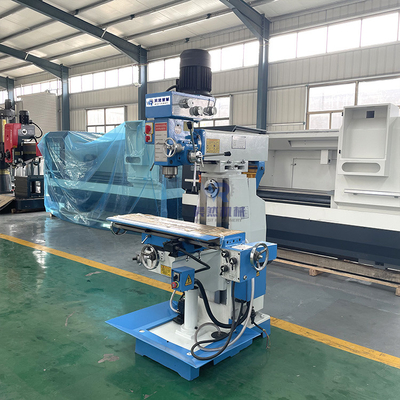

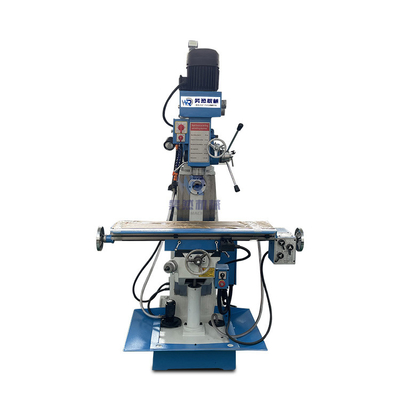

Automated Geared Head Tabletop Vertical Mill Machine For Drilling High Precision

Large Image : Automated Geared Head Tabletop Vertical Mill Machine For Drilling High Precision

Product Details:

Place of Origin:	china
Brand Name:	HR
Certification:	ceiso
Model Number:	ZX7550W

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	usd1900-4000
Packaging Details:	wooden packing
Delivery Time:	30day
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	40set/month

Contact Now

Automated Geared Head Tabletop Vertical Mill Machine For Drilling High Precision

Description

Max. Drilling Dia.:	50mm	Max. End Milling Dia.:	100mm
Max. Vertical Milling Dia.:	25mm	Max.boring Dia.:	120mm
Max. Tapping Dia.:	M16mm	Spindle Travel:	120mm
Table Size:	1000*240mm	Table Travel:	600*230mm
Highlight:	Automated tabletop vertical mill , Geared Head tabletop vertical mill , Automated geared head milling drilling machine

Automated Geared Head Tabletop Vertical Mill Machine For Drilling High Precision

Three axis hardened treatment, high rigidity. vertical horizontal multi-functional ,drilling ,milling, boring operation. X axis mechanical feed,Y.Z axis can be added the device Gear transmission milling head, stable transmission, compact structure ,easy maintenance, easy to operate

ZX7550CW	SPECIFICATIONS	Units
Max. drilling dia.	50	mm
Max. end milling dia.	100	mm
Max. vertical milling dia.	25	mm
Max.boring dia.	120	mm
Max. tapping dia.	M16
Distance between spindle nose and table surface	90～490	mm
Spindle speed range	115～1750(V)/60～1350(H)	r.p.m
Spindle travel	120	mm
Table size	1000*240	mm
Table travel	600*230	mm
overall dimension	1280×1100×2080	mm
Main motor power	1.5/2.2(V)1.5(H)	w
Machine weight	850	kg

Feature:

1.Uses standardized assemblies from the VH milling machine universal use as milling machines and drill press

2.Easily shiftable gear drive ensures power transmission without losses

3.With V-belt spindle drive and gear spindle drive

4.Head swivels into the horizontal level on both sided via crank and toothed gear, easy activation of manual micro-feed for the spindle quill

Advantages:

1.Three axis hardened treatment, high rigidity.

2.vertical horizontal multi-functional ,drilling ,milling, boring operation.

3.X axis mechanical feed,Y.Z axis can be added the device

4.Gear transmission milling head, stable transmission, compact structure ,easy maintenance, easy to operate

Packaging＆Shipping

Packaging Details: 1. Outside package: Standard marine export plywood case. 2. Inner package: Stretchy film and plastic film for humidity. We can package according to your requests. Delivery Detail: Shipped in 20-30 working days after payment.

Certifications

customer visiting

Contact Person: Yang

Tel: +8618660828360
