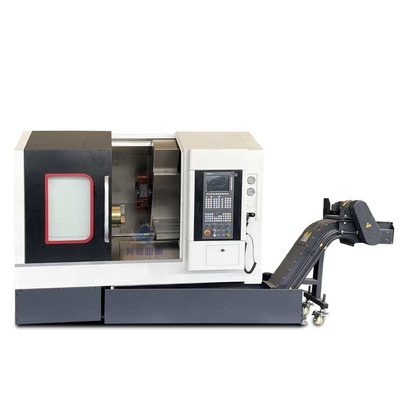

TCK550 Slant Bed CNC Lathe Metal Turning Machine 550mm Diameter

TCK550 Slant Bed CNC Lathe Metal Turning Machine 550mm Diameter
TCK550 Slant Bed CNC Lathe Metal Turning Machine 550mm Diameter TCK550 Slant Bed CNC Lathe Metal Turning Machine 550mm Diameter

Large Image :  TCK550 Slant Bed CNC Lathe Metal Turning Machine 550mm Diameter

Product Details:
Place of Origin: china
Brand Name: HR
Certification: ceiso
Model Number: TCK550
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: usd 19000-40000
Packaging Details: wooden packing
Delivery Time: 30day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 40set/month
Contact Now

TCK550 Slant Bed CNC Lathe Metal Turning Machine 550mm Diameter

Description
Specification: TCK550 Max Swing Over Bed Dia.: Φ550mm
Max Swing Over The Cross Slide Dia.: Φ300mm Max Cutting Length: 1500mm
Max Turning Diameter: Φ550mm Hydraulic Chuck Size: 8"mm
Spindle Nose: A2-8（GB/T5900.1） Spindle Taper/diameter: 100(1：20)/Φ 66mm
Highlight:

Metal Slant Bed CNC Lathe

,

TCK550 CNC Lathe Machine

,

550mm Metal Turning Machine

TCK550 slant bed cnc lathe high quality metal turning machine
Product Introduction
The slant bed CNC lathe is a high-precision and efficient fully automatic lathe. Equipped with multiple workstation turrets or power turrets, the lathe has a wide range of machining performance, suitable for turning disc and shaft parts. It can perform precision machining of complex processes such as straight lines, arcs, metric and inch threads, multi head threads, multi prisms, multi end faces, and multi angles, and has played a good economic effect in large-scale production of complex parts.

Specification
TCK550
Work Capability
Max swing over bed Dia.
550mm
Max swing over the cross slide Dia.
280mm
Max cutting length
750mm
Max turning diameter
550mm
Spindle
Hydraulic chuck size
8"mm
Spindle nose
A2-8(GB/T5900.1)
Spindle taper/diameter
100(1:20)/Φ 66mm
Spindle speed
20-3500r/min
Main motor power
7.5kw
Tail stock
Tail stock sleeve dia./travel
75/100mm
Sleeve taper
MT4
Body
Bed angle
45 °DEG
Travel range for X/Z
300/550mm
Fast feeding speed X/Z
20/24m/min
Servo motor torque X/Z
10/15Nm
Ball screw Dia. X/Z
Φ40X12/40X12mm
Turret
Nos.
8
Tools size
25×25/Φ32mm

Power
20kVA
Dimension size
2800 *1680*2100mm
Weight
4500kg

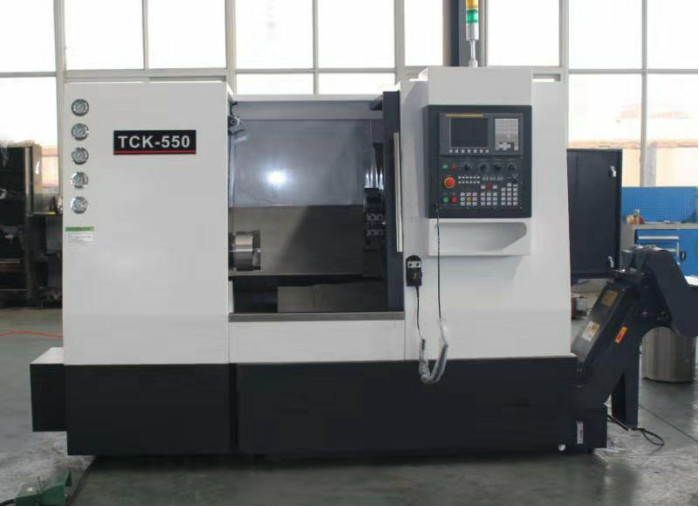

TCK550 Slant Bed CNC Lathe Metal Turning Machine 550mm Diameter 0
Details Images
TCK550 Slant Bed CNC Lathe Metal Turning Machine 550mm Diameter 1

1. The machine bed and base are of integral structure, made of high-strength cast iron, wide bed feet, and inclined bed layout, with high stability and rigidity; The imported roller linear guide rail is used to ensure the stability of the machine tool in long-term use 2. The bed saddle and sliding plate are made of high-strength cast iron. The guide rail pair adopts imported linear guide rail, which has low dynamic and static friction and can move quickly up to 24m/min in X direction and 24m/min in Z direction. Large span of bed saddle and sliding plate, suitable for heavy load and strong cutting.
Packing&Shipping
1.Port: Qingdao port or Shanghai port
2.Payment method: T/T, L/C, D/P, D/D etc.
3.Payment: 30% T/T as deposit, 70% balance shall be paid before shipment.
4.Delivery time: 30 days after receive the 30%T/T deposit.
5.Non-fumigation packaging, we use seaworthy plywood.
6. Steel base plate, it is stronger 3-5 times than normal plywood base plate.
7.Water-proof and damp proof, water resistant film wraped all the machine.
8.Fully sheathed case,prevention of collision and keep the goods intact.
TCK550 Slant Bed CNC Lathe Metal Turning Machine 550mm Diameter 2
Certifications
All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product, please let us know. If you have any other specific requirements, please feel free to contact us. Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.
TCK550 Slant Bed CNC Lathe Metal Turning Machine 550mm Diameter 3
Customer Photos
We welcome customers to visit the factory, we will let you buy, we will have customers to visit the factory and customers online purchase feedback, through feedback learning experience, continuous progress, better service for you. Shandong HR is willing to unremitting pursuit and efforts, hand in hand with merchants to create a brilliant future
TCK550 Slant Bed CNC Lathe Metal Turning Machine 550mm Diameter 4
Company Introduction
Shandong HR machine Co., Ltd. is a production-oriented enterprise with import and export rights. The company is equipped with many kinds of machine tools and equipment, including nearly 100 sets of large, fine and sophisticated equipment. The enterprise has 100 employees at present, including more than 10 engineers and dozens of workers and technicians. The company has been insisting on staff training for many years, through changing staff concepts, implementing enterprise reform, introducing new management concepts and methods, using modern management level. The company has hundreds of sales outlets, more than one sales branch or office, 30 provinces, cities, autonomous regions. In Europe, South America, Asia, Hong Kong and other countries and regions have long-term cooperation dealers. In recent years, the company insists on changing the mode and adjusting the structure; Implement
brand strategy and expand foreign market; Control the manufacturing level of company equipment. Formed by CNC lathe, CNC milling machine, vertical machining center, gantry machining center, CNC metal band sawing machine, drilling and milling machine series, milling machine series, turret milling machine series, more than ten categories, hundreds of varieties of production scale. It has achieved the expected goal of CNC product serialization and characteristic product individuation, and formed its own brand while
meeting the personalized needs of users.
TCK550 Slant Bed CNC Lathe Metal Turning Machine 550mm Diameter 5
FAQ
Q1: How to buy the right product for you ?
A1: You can pass on your requirements to me, and we will reply to you in time.

Q2: About our after-sales service ?
A2: One-year warranty for all kinds of products after sale service; If you find any defective parts in the first time, we will
timely deal with the free new parts for you to replace the next order.

Q3: How can I choose the most suitable machines ?
A3: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model ,You can also send us the products drawing ,we will choose the most suitable machines for you .

Q4: What are the terms of payment ?
A4: We support a variety of payment methods, such as online bank transfer, prepaid card, carrier billing, domestic bank exchange,credit card, etc

Q5: How long is the machine warranty?
A5: warranty is one year.If you need to replace accessories or parts after the warranty period, we will provide them to you at the cost price.
