CK61100 CNC Flat Bed Lathe Automatic Fanuc Siemens Mitsubishi Control System

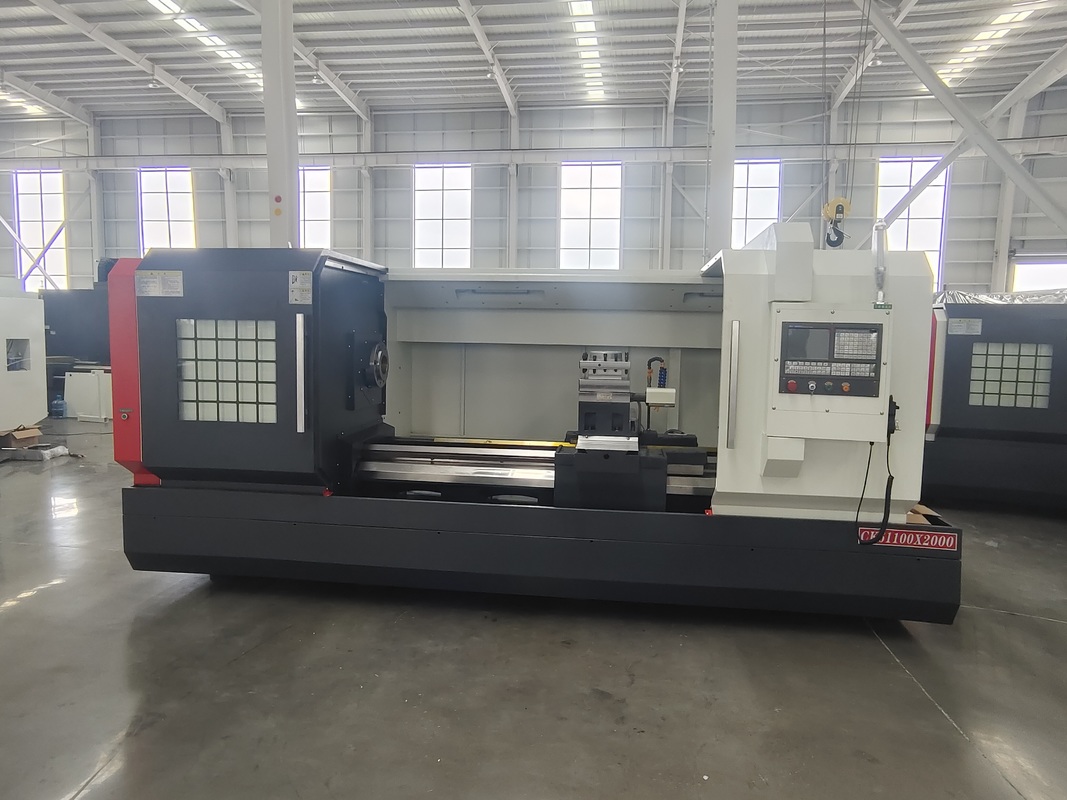

Large Image : CK61100 CNC Flat Bed Lathe Automatic Fanuc Siemens Mitsubishi Control System

Product Details:

Place of Origin:	CHIAN
Brand Name:	HR
Certification:	CE
Model Number:	CK61100

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	19999USD
Packaging Details:	Plywood Box
Delivery Time:	30 working days
Payment Terms:	L/C, T/T
Supply Ability:	100SETS/month

Contact Now

CK61100 CNC Flat Bed Lathe Automatic Fanuc Siemens Mitsubishi Control System

Description

Voltage:	3 PHASE 380V 50HZ	Automatic Grade:	Automatic
Power(w):	11/15kw	Condition:	New
Max. Swing Diameter:	1000mm	Cnc Or Not:	CNC
Type:	Horizontal,TURNING CENTER	After-sales Service Provided:	Engineers Available To Service Machinery Overseas,Online Support
Warranty:	1 Year	Spindle Bore:	105mm
Highlight:	CNC flat bed lathe with Fanuc control , automatic CNC lathe machine , Siemens control CNC lathe

Product Description

CNC Lathe use

The machine tool is automatically controlled by the CNC control system to perform various inner holes, outer circles, conical surfaces, arc surfaces, and thread turning. It is especially suitable for rough and fine machining of shafts and disc parts in small and medium batches, with a degree of automation High, simple programming, high precision and other advantages.

Left Elevation

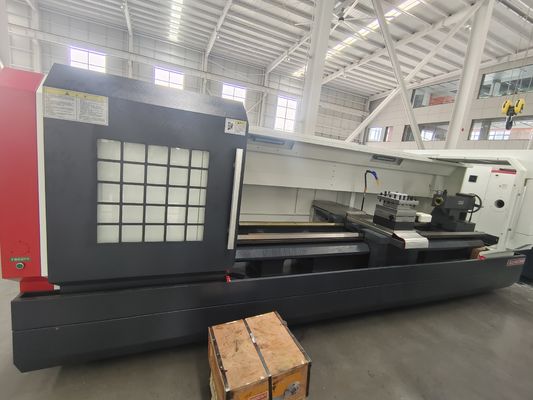

Front Elevation

Right Elevation

CNC Lathe Features

1. A high strength, widening the crriage, suitablefor heavy cutting

2. Four position electricturret
3. Frequency conversion stepless speed regulation
4. Standard configuration: manual chuck
5. Optional configuration:hydraulic chuck

Max. swing over bed(mm)	Φ1000
Max. swing dia. over cross slide(mm)	Φ630
Max.processing length(mm)	1000/1500/2000/3000
Max.processing diameter(mm)	Φ1000
maximum diameter of bar(mm)	Φ630
chuck	630 3jaw or 800 4 jaw
The spindle terminal structure	D11
Diameter of spindle bore(mm)	Φ105
The taper of spindle front-end	1:20
Spindle speeds series	Four files manually/Hydraulic four files
Spindle speeds(r/min)	30-84/53-150/125-350/300-835
X/Z axis travel(mm)	MM350/(1000/1500/2000/3000)
X/Z axis lead screw diameter × pitch(mm)	φ3208/φ5010
X/Z fast moving(m/min)	4/6
Tool post form	Electric vertical
number of work position	4
Tool bar section (turning/boring)	32/40
Sleeve diameter / stroke(mm)	Φ100/250
Sleeve inside the hole taper	MT6
Sleeve driven form	manual
Tailstock body movement form	manual
main motor(kw)	11
Spindle motor torque(nm)	48
Motor of Z axis X(kw)	1.5/2.3
X/Z nm	10/15
Coolant motor power	125w
power capacity	15KVA
Bed saddle layout	Flat bed
Guide form	Harden guide way(＞ HRC50)
Machine weight	4300/4700/5500/6500kg
length × width × height	( 3400/3900/4400/5400 )/1900/2000 mm
