Ck61125 CNC Lathe Bed Width 755mm

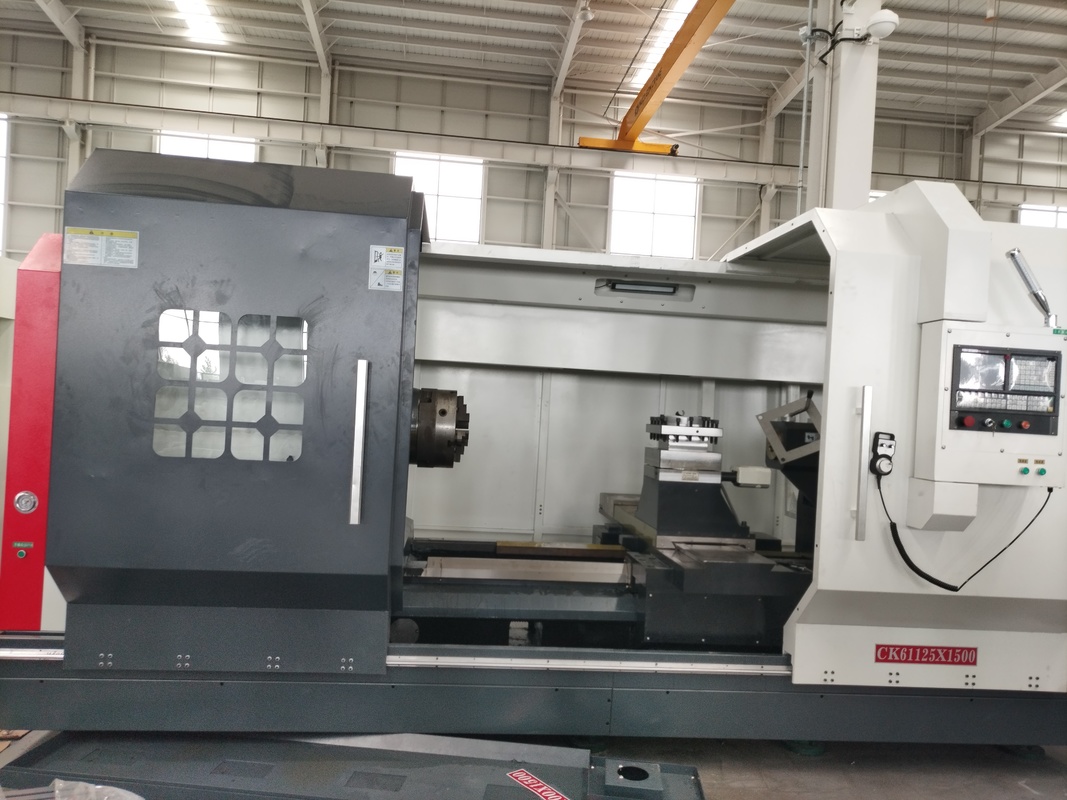

Large Image : Ck61125 CNC Lathe Bed Width 755mm

Product Details:

Place of Origin:	CHINA
Brand Name:	HR
Certification:	CE
Model Number:	CK61125

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	20199-29999USD
Packaging Details:	plywood
Delivery Time:	30 working days
Supply Ability:	100SETS/MONTH

Contact Now

Ck61125 CNC Lathe Bed Width 755mm

Description

Voltage:	3 PHASE 380V 50HZ,380V( As Customer Required )	Automatic Grade:	Automatic
Power(w):	15KW	Condition:	New
Max. Swing Diameter:	1250mm	Cnc Or Not:	CNC
Type:	Horizontal	After-sales Service Provided:	Engineers Available To Service Machinery Overseas,Online Support
Warranty:	1 Year	Spindle Bore:	130mm
Spindle Speed:	30-835rpm	Color:	Can Be Free To Choose
Machine Type:	Flat Bed Lathe	Control System:	SIEMENS GSK FANUC (optional)
Highlight:	CK61125 CNC lathe machine , 755mm bed width CNC lathe , CNC lathe with wide bed

CNC Lathe use

The machine tool is automatically controlled by the CNC control system to perform various inner holes, outer circles, conical surfaces, arc surfaces, and thread turning. It is especially suitable for rough and fine machining of shafts and disc parts in small and medium batches, with a degree of automation High, simple programming, high precision and other advantages.

Left Elevation

Front Elevation

Right Elevation

CNC Lathe Features

1. A high strength, widening the crriage, suitablefor heavy cutting

2. Four position electricturret
3. Frequency conversion stepless speed regulation
4. Standard configuration: manual chuck
5. Optional configuration:hydraulic chuck

type	Parameter
Max. swing over bed	Φ1250mm
Max. swing dia. over cross slide	Ф900mm
Max turning diameter	Φ1250mm
Processing length	1000-5000mm
Effective processing length	850/1350/2850/3800/4800
X/Z axis max. stroke	530/1000-5000
X/Z axis min.displacement unit	0.001
Diameter of spindle bore	Ф105mm
Form	Four gears No gearshift
Spindle speed	30-84/53-150/125-350/300-835
Main motor power(frequency conversion)	11KW
Frequency converter	15KW
X/Z axis torque	10/15 N.m
X/Z axis Cutting feed rate	4/6 m/min
type	4 station electric tool post
Section of tool shank	40*40
Repetitive position precision	≤0.004
Dia.of tailstock sleeve	Φ75mm
Travel of tailstock sleeve	200mm
Sleeve taper	MT 6#
Net weight	4500/5000/5500/6000/6500/7000kg
Dimension size(L×W×H)	2800/3700/4200/5200/6200/720018201780
Power demand (power/current)	20kW/30A
