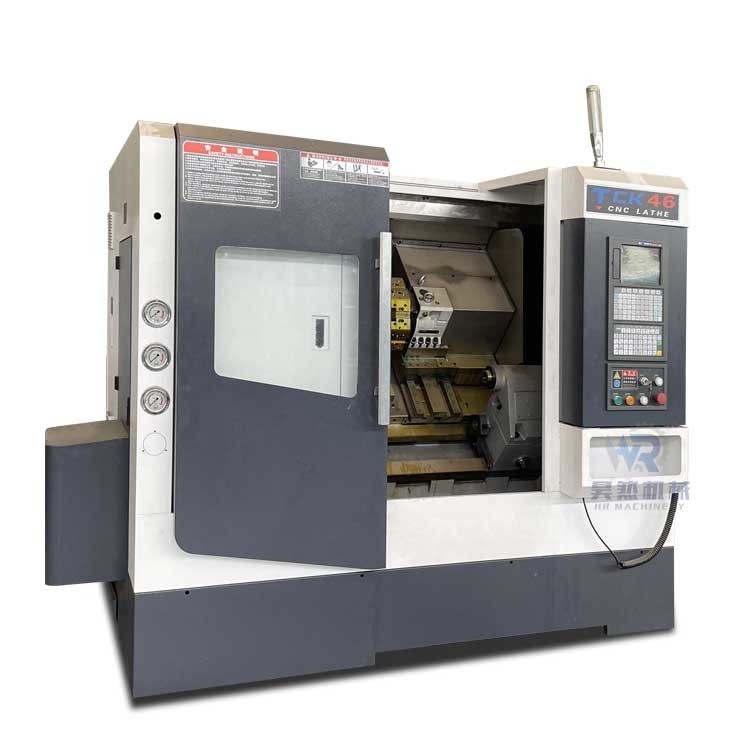

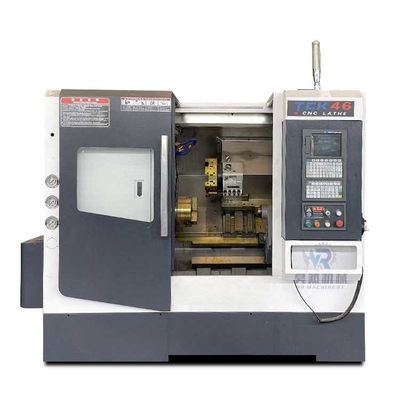

Slant Bed CNC Lathe Machining Metal Turning Lathe Machine TCK46P

All Products

CNC Vertical Machining Center

(76)

CNC Vertical Milling Machine

(14)

CNC VMC Machine

(29)

VMC CNC Milling Machine

(28)

CNC Milling Center

(37)

Universal Milling Machine

(27)

VMC Machining Center

(19)

Vertical Milling Center

(31)

Metal Milling Machine

(20)

4 Axis VMC Machine

(14)

5 Axis Machining Center

(15)

CNC Lathe Machine

(62)
Best Products
High Precision Horizontal CNC Pipe Thread Lathe QK1322-1500 With 500MM Max Cutting Length

High Precision Horizontal CNC Pipe Thread Lathe QK1322-1500 With 500MM Max Cutting Length

Horizontal Tck56-1000 Slant Bed Cnc Lathe Machine High Precision

Horizontal Tck56-1000 Slant Bed Cnc Lathe Machine High Precision

I'm Online Chat Now

Slant Bed CNC Lathe Machining Metal Turning Lathe Machine TCK46P

Slant Bed CNC Lathe Machining Metal Turning Lathe Machine TCK46P
Slant Bed CNC Lathe Machining Metal Turning Lathe Machine TCK46P
Slant Bed CNC Lathe Machining Metal Turning Lathe Machine TCK46P Slant Bed CNC Lathe Machining Metal Turning Lathe Machine TCK46P Slant Bed CNC Lathe Machining Metal Turning Lathe Machine TCK46P

Large Image :  Slant Bed CNC Lathe Machining Metal Turning Lathe Machine TCK46P

Product Details:
Place of Origin: china
Brand Name: HR
Certification: ceiso
Model Number: TCK 46P
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: usd 18000-40000
Packaging Details: standard export package(plywood case)
Delivery Time: 30day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 40set/month
Contact Now

Slant Bed CNC Lathe Machining Metal Turning Lathe Machine TCK46P

Description
Max.swing Over Bed Mm: 450 Max. Swing Over Cross Slide Mm: 160
Max. Processing Length Mm: 450 Spindle Nose: A2-6
Spindle Speed Range R/min: 3000 Spindle Bore Mm: 56mm
Highlight:

Slant Bed Metal Turning Lathe Machine

,

TCK46P Slant Bed CNC Lathe

,

Metal Turning Slant Bed Lathe

tck46P slant Bed cnc Lathe Machining Metal Turning Lathe Machine
Product Introduction
The slant bed CNC lathe is a high-precision and efficient fully automatic lathe. Equipped with multiple workstation turrets or power turrets, the lathe has a wide range of machining performance, suitable for turning disc and shaft parts. It can perform precision machining of complex processes such as straight lines, arcs, metric and inch threads, multi head threads, multi prisms, multi end faces, and multi angles, and has played a good economic effect in large-scale production of complex parts.

Slant Bed CNC Lathe Machining Metal Turning Lathe Machine TCK46P 0
Specifications
Units
TCK46P
Max.swing over bed
mm
550
Max. Swing over cross slide
mm
350
Max. Processing length
mm
700
Lathe bed straucture

45°
Distance between cross slide and spindle axis
mm
80
Spindle nose

A2-6
Spindle speed range
R/min
50-3500
Spindle bore
mm
66mm
Bar capacity
mm
45mm
Spindle motor
kw
7.5
X axis travel
mm
500
Z axis travel
mm
450
Y axis travel
mm
90
Turret type

12 station living turret,
X/Z axis positioning accuracy
mm
0.006
X/Z axis repositioning accuracy
mm
0.003
Spindle dividing positioning accuracy
mm
0.02’’(70 arc-seond)
Spindle dividing repositioning accuracy
mm
0.006’’(20 arc-seond)
Machine dimension(LxWxH)
mm
2500x 1800x1800
Net weight
Kg
3500
Details Images
Slant Bed CNC Lathe Machining Metal Turning Lathe Machine TCK46P 1

HT300 integrated bed Using HT300 cast iron, the internal reinforcing ribs are arranged reasonably, with high strength and good shock absorption,ensuring more stable stress during load cutting. making the basic components of the machine tool highly rigid and ensuring the stability of the machine tool for long-term use.
Intelligent distribution board The protective switchgear is equipped with intelligent chips and fault code display, making it easy to quickly read and diagnose faults.
Packing&Shipping
1.Port: Qingdao port or Shanghai port
2.Payment method: T/T, L/C, D/P, D/D etc.
3.Payment: 30% T/T as deposit, 70% balance shall be paid before shipment.
4.Delivery time: 30 days after receive the 30%T/T deposit.
5.Non-fumigation packaging, we use seaworthy plywood.
6. Steel base plate, it is stronger 3-5 times than normal plywood base plate.
7.Water-proof and damp proof, water resistant film wraped all the machine.
8.Fully sheathed case,prevention of collision and keep the goods intact.
Slant Bed CNC Lathe Machining Metal Turning Lathe Machine TCK46P 2
Certifications
All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product, please let us know. If you have any other specific requirements, please feel free to contact us. Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.
Slant Bed CNC Lathe Machining Metal Turning Lathe Machine TCK46P 3
Customer Photos
We welcome customers to visit the factory, we will let you buy, we will have customers to visit the factory and customers online purchase feedback, through feedback learning experience, continuous progress, better service for you. Shandong HR is willing to unremitting pursuit and efforts, hand in hand with merchants to create a brilliant future
Slant Bed CNC Lathe Machining Metal Turning Lathe Machine TCK46P 4
Company Introduction
Shandong HR machine Co., Ltd. is a production-oriented enterprise with import and export rights. The company is equipped with many kinds of machine tools and equipment, including nearly 100 sets of large, fine and sophisticated equipment. The enterprise has 100 employees at present, including more than 10 engineers and dozens of workers and technicians. The company has been insisting on staff training for many years, through changing staff concepts, implementing enterprise reform, introducing new management concepts and methods, using modern management level. The company has hundreds of sales outlets, more than one sales branch or office, 30 provinces, cities, autonomous regions. In Europe, South America, Asia, Hong Kong and other countries and regions have long-term cooperation dealers. In recent years, the company insists on changing the mode and adjusting the structure; Implement
brand strategy and expand foreign market; Control the manufacturing level of company equipment. Formed by CNC lathe, CNC milling machine, vertical machining center, gantry machining center, CNC metal band sawing machine, drilling and milling machine series, milling machine series, turret milling machine series, more than ten categories, hundreds of varieties of production scale. It has achieved the expected goal of CNC product serialization and characteristic product individuation, and formed its own brand while
meeting the personalized needs of users.
Slant Bed CNC Lathe Machining Metal Turning Lathe Machine TCK46P 5
FAQ
Q1: How to buy the right product for you ?
A1: You can pass on your requirements to me, and we will reply to you in time.

Q2: About our after-sales service ?
A2: One-year warranty for all kinds of products after sale service; If you find any defective parts in the first time, we will
timely deal with the free new parts for you to replace the next order.

Q3: How can I choose the most suitable machines ?
A3: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model ,You can also send us the products drawing ,we will choose the most suitable machines for you .

Q4: What are the terms of payment ?
A4: We support a variety of payment methods, such as online bank transfer, prepaid card, carrier billing, domestic bank exchange,credit card, etc

Q5: How long is the machine warranty?
A5: warranty is one year.If you need to replace accessories or parts after the warranty period, we will provide them to you at the cost price.
