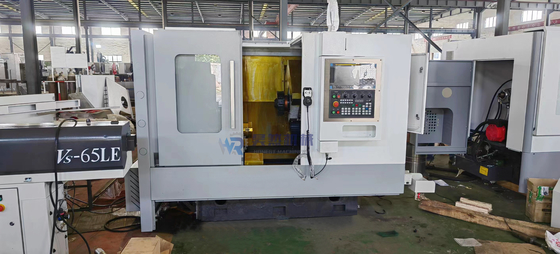

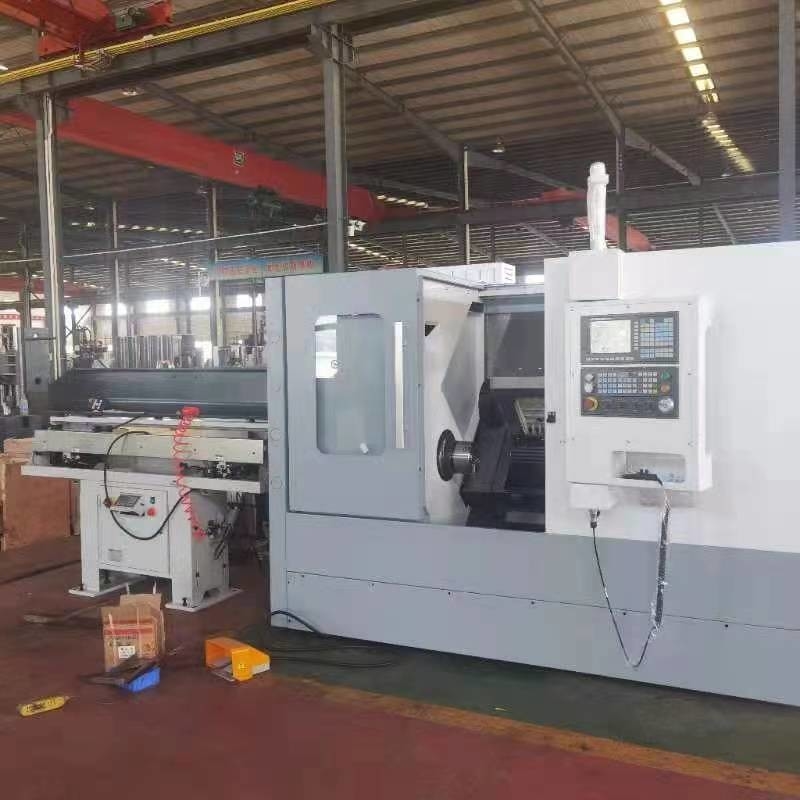

High Precision Horizontal Slant Bed CNC Lathe Machine TCK46P

High Precision Horizontal Slant Bed CNC Lathe Machine TCK46P
High Precision Horizontal Slant Bed CNC Lathe Machine TCK46P High Precision Horizontal Slant Bed CNC Lathe Machine TCK46P High Precision Horizontal Slant Bed CNC Lathe Machine TCK46P High Precision Horizontal Slant Bed CNC Lathe Machine TCK46P High Precision Horizontal Slant Bed CNC Lathe Machine TCK46P

Large Image :  High Precision Horizontal Slant Bed CNC Lathe Machine TCK46P

Product Details:
Place of Origin: Shandong,China
Brand Name: HR
Certification: CE
Model Number: tck46p
Payment & Shipping Terms:
Minimum Order Quantity: 1 sets
Price: $22960 1set
Packaging Details: Standard material packaging
Delivery Time: 30 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 40sets months
Contact Now

High Precision Horizontal Slant Bed CNC Lathe Machine TCK46P

Description
Voltage: 380V,3 PHASE 380V 50HZ Automatic Grade: Automatic
Power(w): 4.0/5.5/7.5kw Condition: New
Dimension(l*w*h): 2500x1800x1800mm Cnc Or Not: CNC
Type: Horizontal After-sales Service Provided: Online Support
Warranty: 1 Year Spindle Bore: 56mm
Weight: 3000kg Product Name: Economic Type Hydraulic Seals CNC Lathe Machine
Year: New Control System: SIEMENS GSK FANUC (optional)
Travel (X Axis)(mm) Length: 500mm
Highlight:

High Precision Slant Bed CNC Lathe

,

Horizontal Slant Bed CNC Lathe Machine

,

TCK46P CNC Lathe Machine

High-Precision Automatic Siemens Cnc Lathe Price tck46p
Cheap Metal Torno Cnc
Product Description
High Precision Horizontal Slant Bed CNC Lathe Machine TCK46P 0
High Precision Horizontal Slant Bed CNC Lathe Machine TCK46P 1
High Precision Horizontal Slant Bed CNC Lathe Machine TCK46P 2
Max.swing over bed
mm
ck46p
Max. Swing over cross slide
mm
160
Max. Processing length
mm
450
Cross slide length
mm
780
Lathe bed straucture

45° integral inclined lathe
Distance between cross slide and spindle axis
mm
80
Spindle nose

A2-5
Spindle (C axis )speed range
R/min
50-4500
Spindle bore
mm
56mm
Bar capacity
mm
45mm
Spindle (C Axis)motor
kw
7.5
Milling head

(side)4 (nose)4
Milling head power
kw
2.3
Milling head speed
R/min
5000
Distance of each milling head
mm
60
X axis travel
mm
500
Z axis trave
mm
450
Y axis trave
mm
240
Turret type

12 station lving turret
X rapid traverse
Mm/min
24000
Z rapid traverse
Mm/min
24000
Y rapid traverse
Mm/min
15000
X/Z axis positioning accuracy
mm
0.006
X/Z axis repositioning accuracy
mm
0.003
Spindle (C axis)dividing positioning accuracy
mm
0.02’’(70 arc-seond)
Spindle (C axis)dividing repositioning accuracy
mm
0.006’’(20 arc-seond)
Machine dimension(LxWxH)
mm
2500x1800x1800
Net weight
Kg
3500

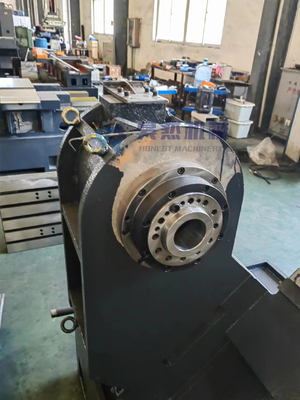

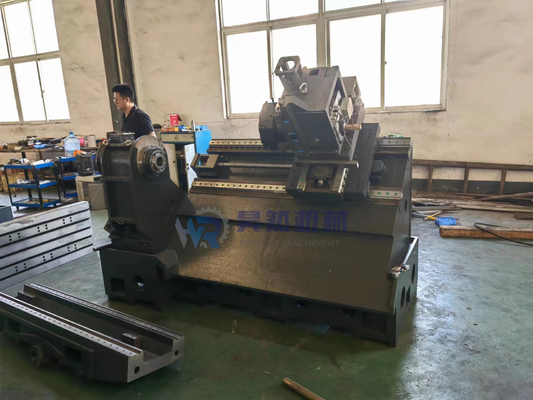

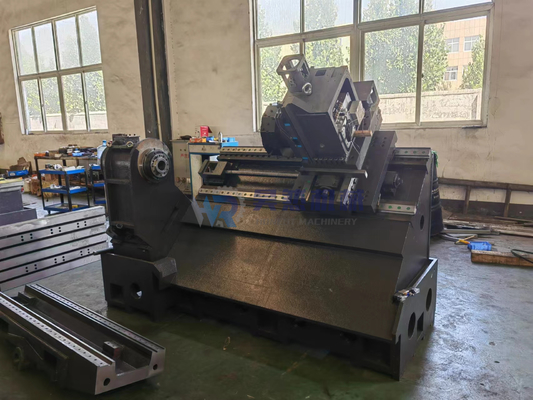

Detailed Images
