TCK56 Automatic CNC Lathe Machine CNC Slant Bed Turning And Milling Machine

TCK56 Automatic CNC Lathe Machine CNC Slant Bed Turning And Milling Machine
TCK56 Automatic CNC Lathe Machine CNC Slant Bed Turning And Milling Machine
TCK56 Automatic CNC Lathe Machine CNC Slant Bed Turning And Milling Machine TCK56 Automatic CNC Lathe Machine CNC Slant Bed Turning And Milling Machine TCK56 Automatic CNC Lathe Machine CNC Slant Bed Turning And Milling Machine TCK56 Automatic CNC Lathe Machine CNC Slant Bed Turning And Milling Machine

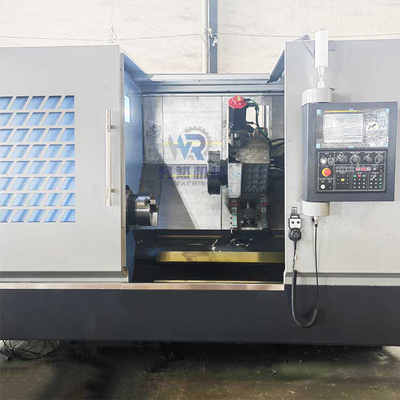

Large Image :  TCK56 Automatic CNC Lathe Machine CNC Slant Bed Turning And Milling Machine

Product Details:
Place of Origin: China
Brand Name: HR
Certification: CE ISO
Model Number: TCK56
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: usd 19000-40000
Packaging Details: Standard export Package
Delivery Time: 30day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 40set/month
Contact Now

TCK56 Automatic CNC Lathe Machine CNC Slant Bed Turning And Milling Machine

Description
Parameter: TCK56 Max Swing Over Bed Dia.（mm）: Φ560
Max Swing Over Cross Slide Dia.（mm）: Φ330 Max Cutting Length（mm）: 500
X Axis Travel（mm）: 270 Z Axis Travel（mm）: 700
X、Z Axis Feed Speed（m/min）: 30/36 Spindle Bore Dia（mm）: Φ62
Highlight:

TCK56 CNC Lathe Machine

,

CNC Slant Bed Machine 560mm

,

Automatic CNC Slant Bed Machine

TCK56 Chinese high quality hot sales CNC slant bed cnc lathe machine
Product Introduction
The TCK56 Chinese high quality hot sales CNC slant bed cnc lathe machine cnc bar automatic lathe product is a semi-closed slant-bed turning and milling machine with X, Y, Z and C axes servo control. The structure and external dimensions are compact and reasonable. The spindle (C axis) is driven by a servo motor. It can realize the turning of the outer circle, the end surface and the thread of various materials, such as shafts and discs, and various surface milling and drilling in radial and axial directions, and is suitable for efficient machining of small parts.
TCK56 Automatic CNC Lathe Machine CNC Slant Bed Turning And Milling Machine 0
Item
parameter
TCK56
Processing range
Max swing over bed Dia.(mm)
Φ560
Max swing over cross slide Dia.(mm)
Φ330
Max cutting length(mm)
500
Travel and feed
X axis travel(mm)
270
Z axis travel(mm)
700
X,Z axis feed speed(m/min)
30/36
X/Z axis feed motor powr(kw)
2.4
positional accuracy
X/Z axis repeated positioning accuracy


0.005/0.006
X/Z-axis positioning accuracy(mm)
0.01/0.015
Spindle
Spindle speed(rpm)
10-3000rpm
Spindle nose
JISA2-6
Spindle bore Dia(mm)
Φ62
Chuck
8” hydraulic chuck
Main motor(kw)
11/15KW

Turret
No.of tool holder
12 station
Y axis travel (mm)
90
Tool change time(s)
0.2
Tools size(mm)
20×20
Boring tool size(mm)
Φ32
Tail stock
Tailstock travel(mm)
440
taper of center
MT.NO.4
cooling system
Coolant capacity(L)
150
Dimensions
L*W*H(mm)
2318´1585´1770
weight
Machine weight(kg)
4500KG
Details Images
TCK56 Automatic CNC Lathe Machine CNC Slant Bed Turning And Milling Machine 1

HT300 integrated bed Using HT300 cast iron, the internal reinforcing ribs are arranged reasonably, with high strength and good shock absorption,ensuring more stable stress during load cutting. making the basic components of the machine tool highly rigid and ensuring the stability of the machine tool for long-term use.
Intelligent distribution board The protective switchgear is equipped with intelligent chips and fault code display, making it easy to quickly read and diagnose faults.
Packing&Shipping
1.Port: Qingdao port or Shanghai port
2.Payment method: T/T, L/C, D/P, D/D etc.
3.Payment: 30% T/T as deposit, 70% balance shall be paid before shipment.
4.Delivery time: 30 days after receive the 30%T/T deposit.
5.Non-fumigation packaging, we use seaworthy plywood.
6. Steel base plate, it is stronger 3-5 times than normal plywood base plate.
7.Water-proof and damp proof, water resistant film wraped all the machine.
8.Fully sheathed case,prevention of collision and keep the goods intact.
TCK56 Automatic CNC Lathe Machine CNC Slant Bed Turning And Milling Machine 2
Certifications
All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product, please let us know. If you have any other specific requirements, please feel free to contact us. Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.
TCK56 Automatic CNC Lathe Machine CNC Slant Bed Turning And Milling Machine 3
Customer Photos
We welcome customers to visit the factory, we will let you buy, we will have customers to visit the factory and customers online purchase feedback, through feedback learning experience, continuous progress, better service for you. Shandong HR is willing to unremitting pursuit and efforts, hand in hand with merchants to create a brilliant future
TCK56 Automatic CNC Lathe Machine CNC Slant Bed Turning And Milling Machine 4
Company Introduction
Shandong HR machine Co., Ltd. is a production-oriented enterprise with import and export rights. We are located in shandong provice.We are one of professional cnc lathe machine, cnc milling machine and swiss lathe machine manufacturer in china.We founded our fast lathe machine factory in 1996 in tengzhou City to produce center lathe and univesal milling machine for over 20 years development,we build three factories.One is for cnc lathe production one for cnc milling production. We imported advanced production technology and R&D team from Korean in 2001 and build our third factory forswiss lathe machine production.We own about 500 wokers and 40 engineers, more than 5000 square meter .
TCK56 Automatic CNC Lathe Machine CNC Slant Bed Turning And Milling Machine 5
