SM205 Swiss Type Automatic Cnc Horizontal Lathe Machine White

I'm Online Chat Now

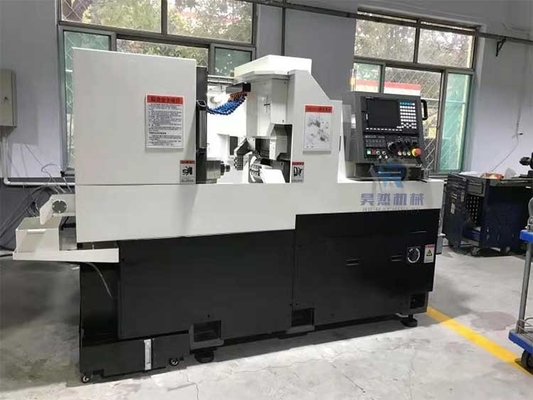

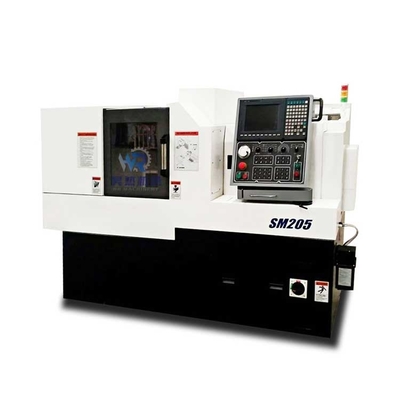

SM205 Swiss Type Automatic Cnc Horizontal Lathe Machine White

SM205 Swiss Type Automatic Cnc Horizontal Lathe Machine White
SM205 Swiss Type Automatic Cnc Horizontal Lathe Machine White SM205 Swiss Type Automatic Cnc Horizontal Lathe Machine White SM205 Swiss Type Automatic Cnc Horizontal Lathe Machine White

Large Image :  SM205 Swiss Type Automatic Cnc Horizontal Lathe Machine White

Product Details:
Place of Origin: CHINA
Brand Name: HR
Certification: CE
Model Number: SM205
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 45000usd
Packaging Details: Standard packaging
Delivery Time: 30 days
Payment Terms: D/A, D/P, T/T, Western Union
Supply Ability: 50sets 1 month

SM205 Swiss Type Automatic Cnc Horizontal Lathe Machine White

Description
Voltage: 380V,3 PHASE 380V 50HZ,380V( As Customer Required ) Automatic Grade: Automatic,Semi-automatic
Power(w): 4KW,7.5kw Condition: New
Max. Swing Diameter: 400mm,320mm Weight: 1650/1700kg
Highlight:

Swiss cnc horizontal lathe machine

,

White cnc horizontal lathe machine

,

Swiss horizontal cnc lathe machine

Product Description


SM205 Best Selling Products focus cnc lathe automatic lathe swiss type configuration vice spindle, belonging to the turning and milling compound model. The biggest feature is the workpiece after a clamping can be achieved complete processing, reducing the number of equipment required, but also improve the production efficiency. After cutting off the parts, the sub-spindle grips the part and completes the machining on the back, such as drilling, boring and milling on the back. The machine is also equipped with automatic feeder, the feeder part can be installed short feeder and long feeder. Can be achieved continuous feeding of materials under the continuous processing. The equipment is most suitable for aerospace, aerospace, military, automotive, communications, optics, medical equipment and other high-precision, work complex slender shaft parts.


SM205 Swiss Type Automatic Cnc Horizontal Lathe Machine White 0
SM205 Swiss Type Automatic Cnc Horizontal Lathe Machine White 1


Feature of sm205 High precision 2 spindle swiss type cnc automatic lathe machine for dental
1.Arrangement of tooling:13 fixed tools and 9 live tools among 22 tools can handle complex processing.
2.Fanuc system: Stability self diagnostician(chucking,ejector, oil cooling,cut, tool breakdown).
3.Front end tool:5 fixed tools in front end tool, 4 live tools in cross drill,6 fixed tools in bite tool.
4.Back-end fixed tool:1 fixed tool and 3 live tools.
5. Toggle system: Lt is possible to maintain continuous process without toggle’s damage.
6.Off-center tool:1 fixed tool and 2 live tools,finished parts by our machine tools



Processing capacity

Max maching diameter

mm

20

Stroke

mm

260

Max. Turning Diameter

mm

20

Main Spindle RPM

rpm

8000

C axis Additional Positive Brake



1/1000(0.001)

Max. Turning Diameter

mm

20

Traverse Rate

Stroke

X1 axis

mm

60

Y axis

mm

342.5

Z1 axis

mm

260

X2 axis

mm

355

Z2 axis

mm

220

Rapid Traverse Rate

X1 axis

m/min

24

Number of tools

O.D Tools

ea

6

Front Work Tools

ea

5

Cross Living Tools

ea

4

Back Work Tools

ea

3(Rotation)+1(fixed)

O.D Tools specification

mm

12×12

Front Work Tools diameter

mm

(Standard)25







Motors

Cross Driven Tools motor

kw

2.5kw

Back Work Tools motor

kw

1

Lubrication pump motor

w

5

Coolant motor

kw

0.4(pressure 0.5bar)

Coolant tank capacity

L

180

Lubrication tank capacity

L

1.8

Height from floor tospindle center

mm

1000

Dimension

mm

2560×1510×1660

Cross Weight

KG

3600



SM205 Swiss Type Automatic Cnc Horizontal Lathe Machine White 2

Detailed Images


SM205 Swiss Type Automatic Cnc Horizontal Lathe Machine White 3

Product Presentation


SM205 Swiss Type Automatic Cnc Horizontal Lathe Machine White 4

Certificate

All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product,please let us know. If you have any other specific requirements, please feel free to contact us. Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.



SM205 Swiss Type Automatic Cnc Horizontal Lathe Machine White 5


Packing&Shipping

1.Port: Qingdao port or Shanghai port
2.Payment method: T/T, L/C, D/P, D/D etc.
3.Payment: 30% T/T as deposit, 70% balance shall be paid before shipment.
4.Delivery time: 30 days after receive the 30%T/T deposit.5.Non-fumigation packaging, we use seaworthy plywood.
6. Steel base plate, it is stronger 3-5 times than normal plywood base plate.
7.Water-proof and damp proof, water resistant film wraped all the machine.
8.Fully sheathed case,prevention of collision and keep the goods intact.


SM205 Swiss Type Automatic Cnc Horizontal Lathe Machine White 6

Company Introduction

Shandong HR machine Co., Ltd. is a production-oriented enterprise with import and export rights. The company is equipped with many kinds of machine tools and equipment, including nearly 100 sets of large, fine and sophisticated equipment. The enterprise has 100 employees at present, including more than 10 engineers and dozens of workers and technicians. The company has been insisting on staff training for many years, through changing staff concepts, implementing enterprise reform, introducing new management concepts and methods, using modern management level. The company has hundreds of sales outlets, more than one sales branch or office, 30 provinces, cities, autonomous regions. In Europe, South America, Asia, Hong Kong and other countries and regions have long-term cooperation dealers. In recent years, the company insists on changing the mode and adjusting the structure; Implement
brand strategy and expand foreign market; Control the manufacturing level of company equipment. Formed by CNC lathe, CNC milling machine, vertical machining center, gantry machining center, CNC metal band sawing machine, drilling and milling machine series, milling machine series, turret milling machine series, more than ten categories, hundreds of varieties of production scale. It has achieved the expected goal of CNC product serialization and characteristic product individuation, and formed its own brand while
meeting the personalized needs of users.


SM205 Swiss Type Automatic Cnc Horizontal Lathe Machine White 7


SM205 Swiss Type Automatic Cnc Horizontal Lathe Machine White 8

Our services
1. We supply 24 hours on-line service,you could contact with us by email ,phone ,wechat ,whatsapp,skype etc.
2. Received your phone or mail,we will Analyze the problem immediately.
3.Supply professional solution, after analyze the problem, we give you our best solution.
4. The warranty period of the whole machine is 1 year. Under normal use, if the machine parts are damaged during the warranty period, we will provide free accessories. Outside the warranty period, if the parts are damaged, we only charge the cost price of the parts, and will never overcharge.
5. Provide lifetime free technical support, you can contact us at any time if you encounter difficulties in the process of use.
6. We provide overseas services, engineers can go to the customer's factory for debugging,installation, maintenance, and repair.(In case of non-epidemic situation).
