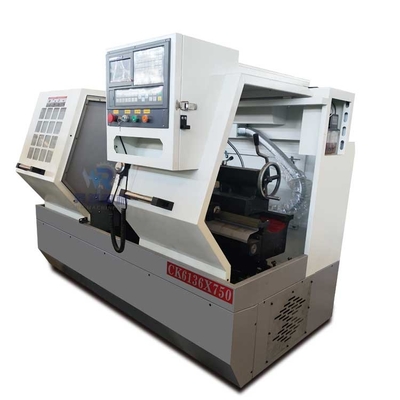

Siemens System CK6136 New Flat Bed Automatic Cnc Lathe Machine For Metal

Large Image : Siemens System CK6136 New Flat Bed Automatic Cnc Lathe Machine For Metal

Product Details:

Place of Origin:	china
Brand Name:	HR
Certification:	ceiso
Model Number:	ck6136

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	usd5000-8000
Packaging Details:	standard export package(plywood case)
Delivery Time:	30days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	40set/month

Contact Now

Siemens System CK6136 New Flat Bed Automatic Cnc Lathe Machine For Metal

Description

Voltage:	380V	Automatic Grade:	Automatic
Power(w):	4KW	Condition:	New
Weight:	1650/1700kg	Type:	Horizontal
Warranty:	2 Years	Spindle Bore:	52mm
Highlight:	Siemens System automatic cnc lathe machine , Flat Bed automatic cnc lathe machine , CK6136 automatic lathe

Siemens System CK6136 CNC Lathe Machine New Flat Bed for Metal automatic lathe machine

Product Introduction

The dimension of spindle box is superior to that of common type, and the overall rigidity is strong.

Ground-type bed with small geometric deformation in integral casting.

The main motor adopts frequency conversion motor, and the torsion is suitable for powerful turning.

Widening and Thickening Overtime, Choosing National standard Heavy Tool Frame.

Large modulus gears and standard three-axle three-gear are used in the spindle box.

Specification	ck0640	ck6130	ck6132	ck6432	ck6136	CK6140
Max. swing dia. over bed	Φ300mm	Φ300mm	Φ360mm	Φ360mm	Φ360mm	Φ400mm
Max. swing dia. over cross slide	φ130mm	100mm	150mm	Φ150mm	Φ190mm	Φ225mm
Max. processing length	240mm	400mm	450mm	450/700mm	750/1000mm	750/1000mm
Spindle bore	Φ42mm	48mm	40mm	Φ60mm	Φ60mm	Φ60mm
Spindle speed	50~2500rpm	150-2500mm	150-2500mm	150-2500mm	150-2500rpm	150-2500rpm
X/Z axis fast feeding speed	6/8 M/MIN	8/10 M/MIN	6/8 M/MIN	8/10 M/MIN	6/8 m/min	6/8 M/MIN
X/Z axis position accuracy	0.01/0.015mm
X/Z-axis repeatability	0.012/0.013mm
clamping	Pneumatic collet				3 Jaw Manual Chuck
tool post type	gang-type tool holder				4 station electric tool holder
Main motor power	3KW	4kw	4kw	4kw	4/5.5KW	5.5KW
Tailstock taper		MT4	MT3	MT4	MT4	MT4
Tailstock sleeve dia.	/	60mm	60mm	60mm	60mm	?
Tailstock sleeve travel	/	100mm	100mm	100	120mm
Overall dimensions(L×W×H)	1550×920×1450	175012001570	1820×1100×1550	1660/1940×1400×1700	1850/2120/2370/x1400x1700mm	2120/2370×1400×1700mm
Net weight	850 kg	1220kg	1200kg	1250/1450kg	1500/1650/1750	1800/1950

Item	CK6150A	ck6150B	CK6163	CK6180	CK61100	CK61125
Max. swing dia. over bed	Φ500mm	Φ500mm	φ630mm	φ800mm	Φ1100mm	Φ1250mm
Max. swing dia. over cross slide	Φ280mm	Φ280mm	φ350mm	φ500mm	Φ820mm	Φ900mm
Processing length	750/1000/1500/2000mm		1000/1500/2000/3000mm		1500/2000/3000/5000mm
Dia. of spindle	Φ82mm		φ105mm		φ105mm
Spindle speed step	step-less	Three gear speed manual change,frequency conversion stepless	Four gears No grade to change frequency		Four gears No grade to change frequency
Spindle speed	14-1500 rpm	30-150,100-500, 320-1100rpm	30-84/53-150/125-350/300-835		30-84/53-150/125-350/300-835rpm
Taper of spindle bore	1:20/Φ90		(Metric)120 1:20
Tool holder	4 station electric tool post
Tool bar section	25X25mm		30×30mm			40×40mm
Main motor power	7.5KW		11KW		11KW
X/Z axis position accuracy	0.02/0.025mm		±0.006mm		±0.006mm
X/Z-axis repeatability	0.01/0.012mm		±0.007mm		X:0.008 mm
X/Z axis fast feeding speed	8/10 M/MIN		4/5 M/MIN			4/6 M/MIN
Tailstock sleeve travel	150mm		250mm			300mm
Tailstock taper	MT5		MT6			MT8
Dimension	2410/2660/3160×1560×1730mm		3200/3700/4200/5200 ×1820×1710mm	3300/3800/4300 × 1940 × 1800mm	2800/3700/4200/5200/6200/720018201780
Net weight(kg)	2800/3200/3500		3900/4300/4800	4100/4500	4300/4700/5500/6500	4500/5000/5500/6000/6500

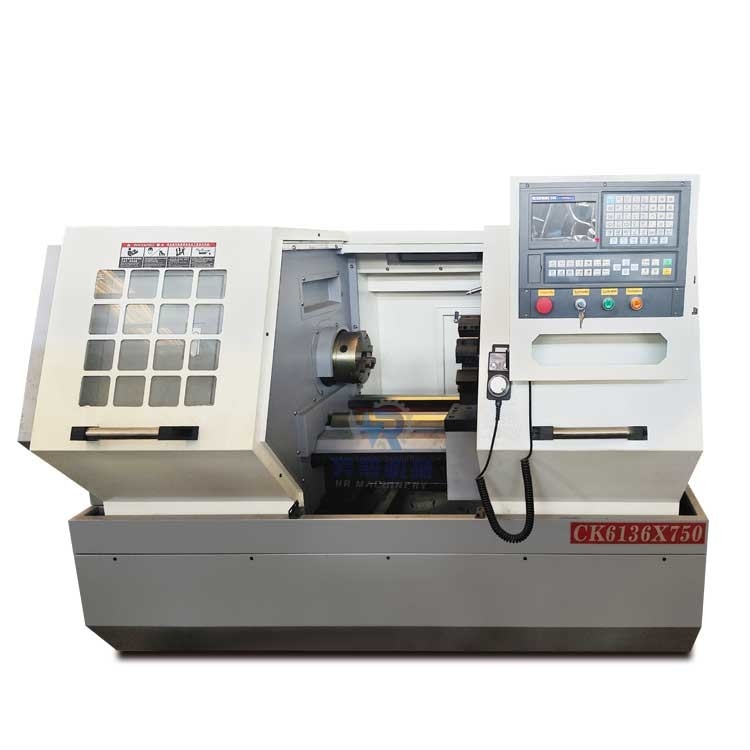

Details Images

CNC lathe machine Standard Configuration GSK980TB3 or GSK980TDC system Manual chuck,manual tailstock, 4 station electric tool post Optional Configuration Siemens or Fanuc system 6 or 8 station turret Hydraulic chuck , hydraulic tailstock
