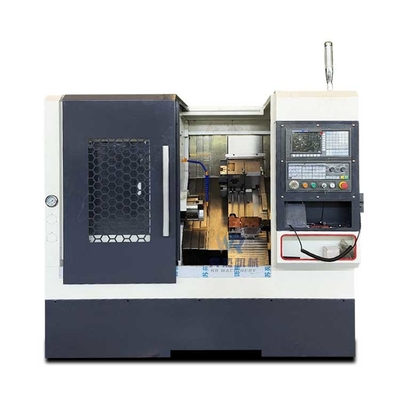

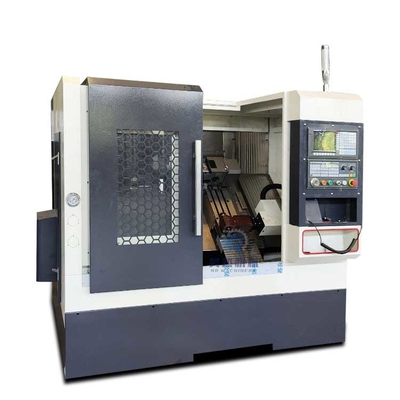

Multifunctional Horizontal CNC Lathe Machine TCK40 With Spindle Bore 52mm And Power W 7.5kw

Multifunctional Horizontal CNC Lathe Machine TCK40 With Spindle Bore 52mm And Power W 7.5kw
Multifunctional Horizontal CNC Lathe Machine TCK40 With Spindle Bore 52mm And Power W 7.5kw Multifunctional Horizontal CNC Lathe Machine TCK40 With Spindle Bore 52mm And Power W 7.5kw

Large Image :  Multifunctional Horizontal CNC Lathe Machine TCK40 With Spindle Bore 52mm And Power W 7.5kw

Product Details:
Place of Origin: china
Brand Name: HR
Certification: ceiso
Model Number: tck40
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: usd12000-20000
Packaging Details: standard export package(plywood case)
Delivery Time: 30days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 40set/month
Contact Now

Multifunctional Horizontal CNC Lathe Machine TCK40 With Spindle Bore 52mm And Power W 7.5kw

Description
Voltage: 380V Automatic Grade: Automatic
Power(w): 7.5kw Condition: New
Weight: 1650/1700kg Cnc Or Not: CNC
Type: Horizontal Warranty: 1 Year
Spindle Bore: 52mm Spindle Speed: 35-3000rpm
Highlight:

Multifunctional CNC Lathe Machine

,

52mm CNC Lathe Machine

,

7.5kw CNC Lathe Machine

China Multifunctional Horizontal CNC Lathe Machine TCK40 Automatic Single Spindle Slant Bed Cnc Lathe
Product Introduction
slant bed cnc turning center lathe machine The whole machine has a compact structure, beautiful appearance, large spindle torque, high rigidity, stable and reliable performance, and excellent accuracy retention. Optimized design of the headstock, suitable for turning of disc and shaft parts. It can process straight, arc, metric and inch threads, and multi-threaded. It is suitable for turning discs and shafts with complex shapes and high precision requirements. Parts Processing.

Multifunctional Horizontal CNC Lathe Machine TCK40 With Spindle Bore 52mm And Power W 7.5kw 0
model
tCK40
Max swing over bed Dia.(mm)
Φ450
Maximum cutting diameter(mm)
Φ120
Max cutting length(mm)
335
X axis travel(mm)
900
Z axis travel(mm)
335
X, axis feed speed(mm/min)
24000
Z axis feed speed(mm/min)
24000
handwheel(mm)
0.001/0.01/0.1
X, Z feed speed(mm/min)
0~5000
X, Z manual feed speed(mm/min)
0~1260
Xaxis repeated positioning accuracy(mm)
0.005
X axis positioning accuracy(mm)
0.01
Z axis repeated positioning accuracy(mm)
0.006
Z axis positioning accuracy(mm)
0.015
Spindle speed(rpm)
35-3000
Spindle maximum torque(N.m)
35
Spindle nose
A2-5(OptionalA2-6)
Spindle bore Dia(mm)
Φ52
Hydraulic chuck through hole diameter(mm)
Φ40
Chuck
6”(Optional8”)
No.of tool holder
3 tool rack
Tool change time(s)
0.25
Tools size(mm)
20×20
Boring tool size(mm)
Φ25
Main motor(kw)
5.5 (4500rpm)
Main motor torque(N.m)
35
X-axis feed motor power(kw)
1.5
X-axis feed motor torque(N.m)
6
Z-axis feed motor power(kw)
1.5
Z-axis feed motor torque(N.m)
6
coolant capacity(L)
200
Motor type(1HP)(kw)
0.125
Machine weight(kg)
1600

Details Images
Multifunctional Horizontal CNC Lathe Machine TCK40 With Spindle Bore 52mm And Power W 7.5kw 1

Using HT300 cast iron, the internal reinforcing ribs are arranged reasonably, with high strength and good shock absorption,ensuring more stable stress during load cutting. making the basic components of the machine tool highly rigid and ensuring the stability of the machine tool for long-term use.
Intelligent distribution board The protective switchgear is equipped with intelligent chips and fault code display, making it easy to quickly read and diagnose faults.
Packing&Shipping
1.Port: Qingdao port or Shanghai port
2.Payment method: T/T, L/C, D/P, D/D etc.
3.Payment: 30% T/T as deposit, 70% balance shall be paid before shipment.
4.Delivery time: 30 days after receive the 30%T/T deposit.
5.Non-fumigation packaging, we use seaworthy plywood.
6. Steel base plate, it is stronger 3-5 times than normal plywood base plate.
7.Water-proof and damp proof, water resistant film wraped all the machine.
8.Fully sheathed case,prevention of collision and keep the goods intact.
Multifunctional Horizontal CNC Lathe Machine TCK40 With Spindle Bore 52mm And Power W 7.5kw 2
