CNC Pipe Threading Lathe QK1327 Automatic Machine

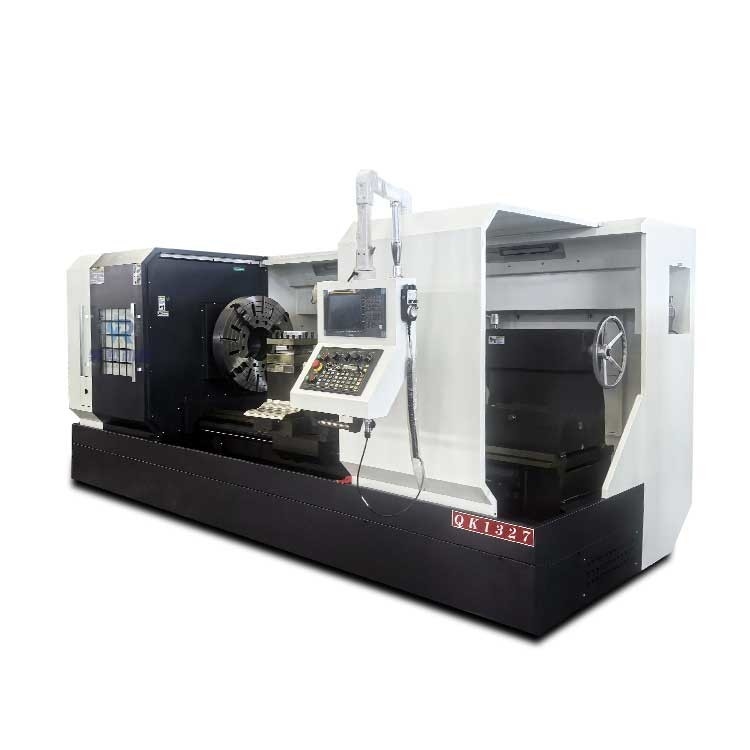

Large Image : CNC Pipe Threading Lathe QK1327 Automatic Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	HR
Certification:	CE
Model Number:	QK1327

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	30000 USD 1 set
Packaging Details:	Standard material packaging
Delivery Time:	30 workdays
Payment Terms:	L/C, T/T
Supply Ability:	100 sets/1 month

Contact Now

CNC Pipe Threading Lathe QK1327 Automatic Machine

Description

Voltage:	3 PHASE 380V 50HZ	Automatic Grade:	Automatic
Power(w):	5.5/7.5kw	Condition:	New
Max. Swing Diameter:	1000mm	Cnc Or Not:	CNC
Type:	TURNING CENTER	After-sales Service Provided:	Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support
Warranty:	1 Year	Spindle Speed:	150-2500rpm
Color:	Can Be Free To Choose	Control System:	SIEMENS GSK FANUC (optional)
Highlight:	Automatic Pipe Threading lathe , Automatic CNC Pipe Threading lathe , QK1327 CNC Pipe Threading lathe

Product Description

This series CNC pipe threading lathe is meainly designed for processing internal and external pipe threads, including metric,inch and taper threads.

Specification

PECIFICATION	Units	QK1327
Swing over bed	mm	800
Swing over cross slide	mm	480
Distance between centers	mm	1000/1500/3000
Pipe threading range	mm	130-270
Guideway width	mm	600
Max. load capacity	T	4
Spindle bore	mm	280
Spindle speed steps	-	VF. 4 steps
Spindle speed range	rpm	20-420
Chuck	mm	Φ800 4-jaw manual
Turret/tool post	-	CNC turret 4 position
Tool shank size	mm	32 x 32
X axis travel	mm	420
Z axis travel	mm	850/1350/2850
X axis rapid traverse	mm/min	4000
Z axis rapid traverse	mm/min	6000
Tailstock quill diameter	mm	φ120
Tailstock quill taper	-	MT6
Tailstock quill travel	mm	250
Main spindle motor	kW	15
Coolant pump motor	kW	0.125
Weight for 1000	kg	6200
Weight for 1500	kg	6700
Weight for 3000	kg	7700
Dimension for 1000	mm	3600x1930x1900

Machine Details

Manual chuck

4-station electric turret

Manual tailstock

GSK CNC system

Optional Fanuc Siemens Mitsubishi syntec
