QK1322 Double Chuck Horizontal Flat Bed Automatic CNC Pipe Threading Lathe Machine For Metal

QK1322 Double Chuck Horizontal Flat Bed Automatic CNC Pipe Threading Lathe Machine For Metal
QK1322 Double Chuck Horizontal Flat Bed Automatic CNC Pipe Threading Lathe Machine For Metal QK1322 Double Chuck Horizontal Flat Bed Automatic CNC Pipe Threading Lathe Machine For Metal QK1322 Double Chuck Horizontal Flat Bed Automatic CNC Pipe Threading Lathe Machine For Metal QK1322 Double Chuck Horizontal Flat Bed Automatic CNC Pipe Threading Lathe Machine For Metal

Large Image :  QK1322 Double Chuck Horizontal Flat Bed Automatic CNC Pipe Threading Lathe Machine For Metal

Product Details:
Place of Origin: china
Brand Name: HR
Certification: ceiso
Model Number: QK1322
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: usd 19000-40000
Packaging Details: standard export package(plywood case)
Delivery Time: 30days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 40set/month
Contact Now

QK1322 Double Chuck Horizontal Flat Bed Automatic CNC Pipe Threading Lathe Machine For Metal

Description
Voltage: 380V Automatic Grade: Automatic
Power(w): 11kw Condition: New
Weight: 4200kg Cnc Or Not: CNC
Type: Horizontal Maximum Turning Diameter Of Bed Mm: 630mm
Highlight:

Automatic CNC Pipe Threading Lathe Machine

,

Metal CNC Pipe Threading Lathe Machine

,

Horizontal Double Chuck CNC Lathe Machine

Qk1322 Double Chuck Horizontal Flat Bed Automatic CNC Pipe Threading Lathe Machine For Metal
Product Introduction

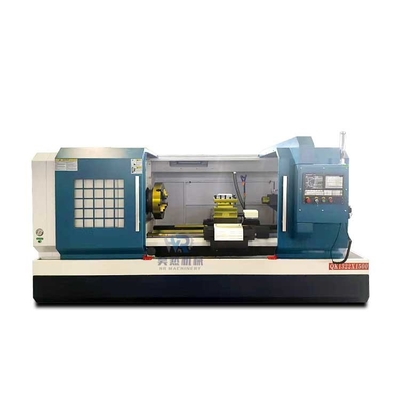

This series CNC pipe threading lathe is mainly designed for processing internal and external pipe threads , as well as having all the common functions of normal CNC lathe such as processing the inner bore and end face of shafts and disks. This series lathe machine is widely used in industries including petroleum exploiting, minerals mining, chemical piping and geological prospecting, it is high-efficiency equipment in processing and repairing drilling pipe, drilling rod, thread coupling and so on.
QK1322 Double Chuck Horizontal Flat Bed Automatic CNC Pipe Threading Lathe Machine For Metal 0
model
QK1322
Maximum turning diameter of bed
mm
630mm
Maximum turning diameter on the
mm
330mm
Maximum processing length
1500mm
Maximum machining diameter
630mm
Chuck
Front and rear 500mm four-
jaw manual chuck
Tool holder

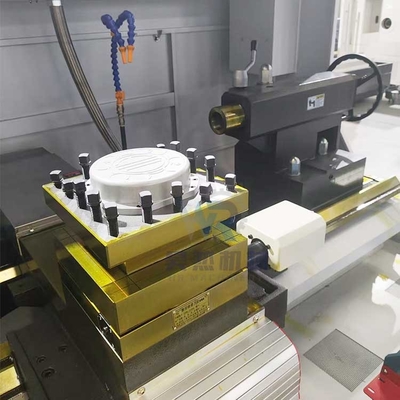

4-station electric tool holder
CNC system
GSK 980
Tailstock
Manual
Spindle through hole diameter
220mm
Spindle power
11kw
Spindle speed range
25-89/108-382 r/min
Rail width
550mm
Maximum stroke X
350mm
Maximum stroke Z
1500mm
X-axis repeat positioning accuracy
0.05
Z-axis repeat positioning accuracy
0.05
Machine weight
4200kg
Dimensions
3750*1830*1900mm
Details Images
QK1322 Double Chuck Horizontal Flat Bed Automatic CNC Pipe Threading Lathe Machine For Metal 1

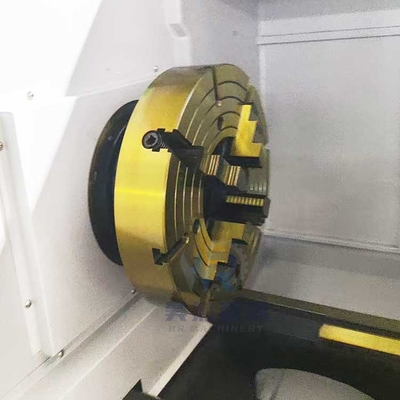

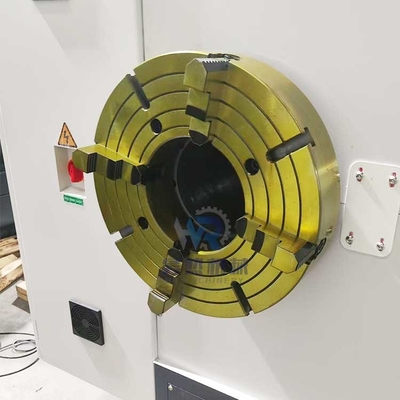

Big spindle bore and double chuck to ensure process big diameter pipe One-piece bed adopts high strength iron to ensure rigidity and precision Ultrasonic frequency quenched guide-ways ensure good wear-resistance
Packing&Shipping
1.Port: Qingdao port or Shanghai port
2.Payment method: T/T, L/C, D/P, D/D etc.
3.Payment: 30% T/T as deposit, 70% balance shall be paid before shipment.
4.Delivery time: 30 days after receive the 30%T/T deposit.
5.Non-fumigation packaging, we use seaworthy plywood.
6. Steel base plate, it is stronger 3-5 times than normal plywood base plate.
7.Water-proof and damp proof, water resistant film wraped all the machine.
8.Fully sheathed case,prevention of collision and keep the goods intact.
QK1322 Double Chuck Horizontal Flat Bed Automatic CNC Pipe Threading Lathe Machine For Metal 2
Certifications
All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product, please let us know. If you have any other specific requirements, please feel free to contact us. Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.
QK1322 Double Chuck Horizontal Flat Bed Automatic CNC Pipe Threading Lathe Machine For Metal 3
Customer Photos
We welcome customers to visit the factory, we will let you buy, we will have customers to visit the factory and customers online purchase feedback, through feedback learning experience, continuous progress, better service for you. Shandong HR is willing to unremitting pursuit and efforts, hand in hand with merchants to create a brilliant future
QK1322 Double Chuck Horizontal Flat Bed Automatic CNC Pipe Threading Lathe Machine For Metal 4
