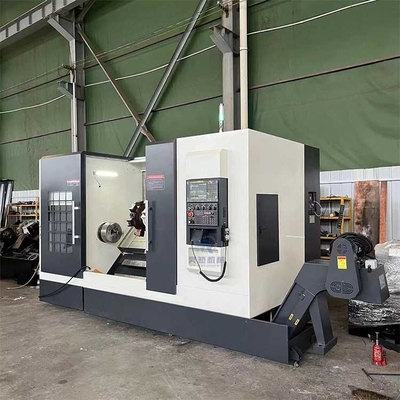

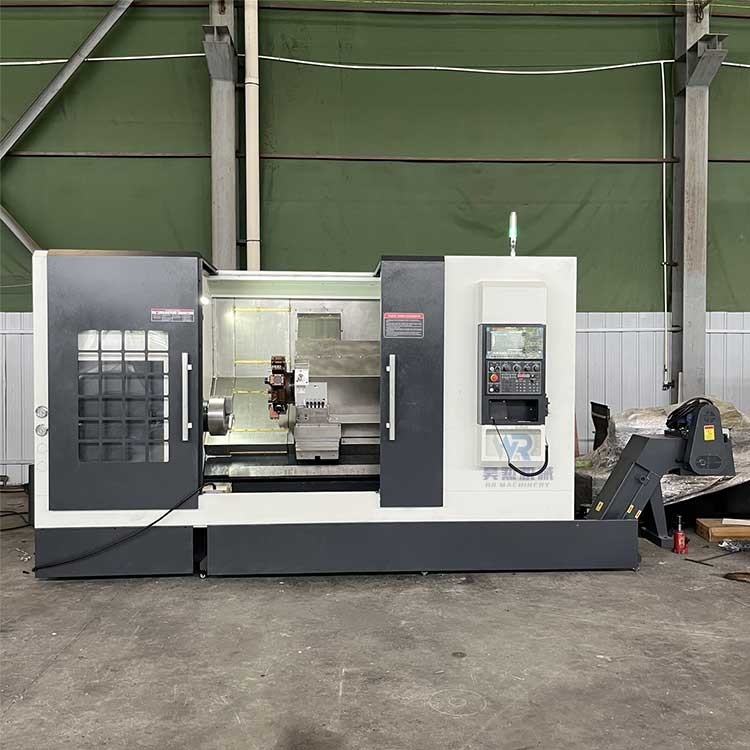

TCK56 Slant Bed CNC Lathe CNC Lathe Machine Power Turret CNC Lathe

TCK56 Slant Bed CNC Lathe CNC Lathe Machine Power Turret CNC Lathe
TCK56 Slant Bed CNC Lathe CNC Lathe Machine Power Turret CNC Lathe TCK56 Slant Bed CNC Lathe CNC Lathe Machine Power Turret CNC Lathe TCK56 Slant Bed CNC Lathe CNC Lathe Machine Power Turret CNC Lathe TCK56 Slant Bed CNC Lathe CNC Lathe Machine Power Turret CNC Lathe

Large Image :  TCK56 Slant Bed CNC Lathe CNC Lathe Machine Power Turret CNC Lathe

Product Details:
Place of Origin: china
Brand Name: HR
Certification: ceiso
Model Number: tck56
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: usd 19000-40000
Packaging Details: standard export package(plywood case)
Delivery Time: 30days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 40set/month
Contact Now

TCK56 Slant Bed CNC Lathe CNC Lathe Machine Power Turret CNC Lathe

Description
Voltage: 380V Automatic Grade: Automatic
Power(w): 11kw Condition: New
Weight: 5500kg Cnc Or Not: CNC
Type: Horizontal Spindle Bore: 66mm
Highlight:

TCK56 CNC Lathe Machine

,

Power Turret CNC Lathe

,

Slant Bed CNC Lathe

TCK56 Slant Bed CNC Lathe CNC Lathe Machine power Turret CNC Lathe
Product Introduction
The slant bed CNC lathe is a high-precision and efficient fully automatic lathe. Equipped with multiple workstation turrets or power turrets, the lathe has a wide range of machining performance, suitable for turning disc and shaft parts. It can perform precision machining of complex processes such as straight lines, arcs, metric and inch threads, multi head threads, multi prisms, multi end faces, and multi angles, and has played a good economic effect in large-scale production of complex parts.

Item
Parameter
TCK56×750
Processing range
Max swing over bed Dia.(mm)
Φ560
Max swing over cross slide Dia.(mm)
Φ460
Max cutting Dia.(mm)
Φ540
Max cutting length(mm)
580
Travel and feed
X axis travel(mm)
280
Z axis travel(mm)
750
X axis movement speed(mm/min)
24000
Z axis movement speed(mm/min)
24000
Hand wheel(mm)
0.001/0.01/0.1
X,Z axis feed speed(mm/min)
0~5000
X,Z axis manual feed speed(mm/min)
0~1260
positional accuracy
X/Z axis repeated positioning accuracy
0.005/0.006
X/Z axis positioning accuracy(mm)
0.01/0.015
Spindle
Spindle speed(rpm)
10-3000rpm(Max. speed of 8” hydraulic chuck is 3500)
Max. spindle torque(N.m)
72
Spindle nose
A2-6
Spindle bore Dia(mm)
Φ66
Hollow hydraulic chuck through hole Dia.(mm)
φ52

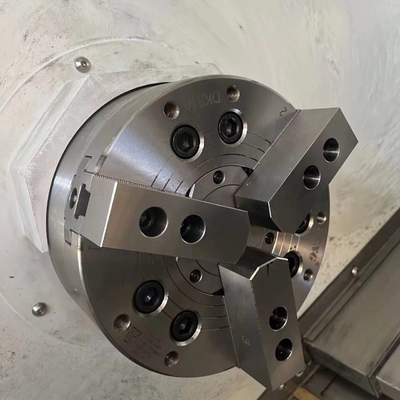

Chuck
8” hydraulic chuck(optional 10")
Main motor
Main motor(kw)
15(4500rpm)
Main motor torque(N.m)
72

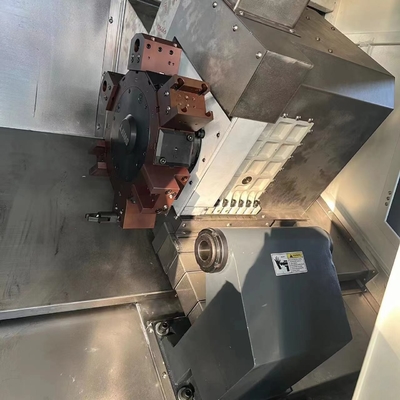

Turret
servo tool turret
12 station
Tool change time(s)
0.25
Tools size(mm)
25×25
Boring tool size(mm)
Φ32
Tail stock
Tailstock travel(mm)
480
taper of center
MT-5#
Feed motor
X/Z axis feed motor powr(kw)
2.3
X/Z axis feeds motor torque(N.m)
15
cooling system
Coolant capacity(L)
200
motor type(1HP)(kw)
0.18
Dimensions
L*W*H(mm)
3400/2060/2100
weight
Machine weight(kg)
5500KG
TCK56 Slant Bed CNC Lathe CNC Lathe Machine Power Turret CNC Lathe 0
Details Images
TCK56 Slant Bed CNC Lathe CNC Lathe Machine Power Turret CNC Lathe 1

45 Degree Machine structure 1. Special structure more stronger 2. Heavy loading capacity 3.Easy metal chips falling down Spindle Unite 1. High speed A2-6 spindle unit, 65mm spindle hole 2. High speed and heady cutting 3. Optional: A2-8 Spindle unit ,80mm spindle hole Stepless Spindle 1.Stepless spindle speed 2.11KW Servo main motor Linear rails 1. X Z axis Adopts Taiwan Linear rails 2. High speed , High accuracy
