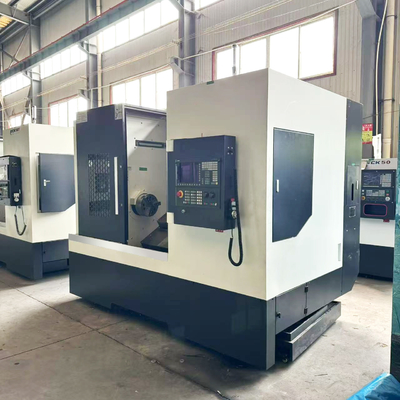

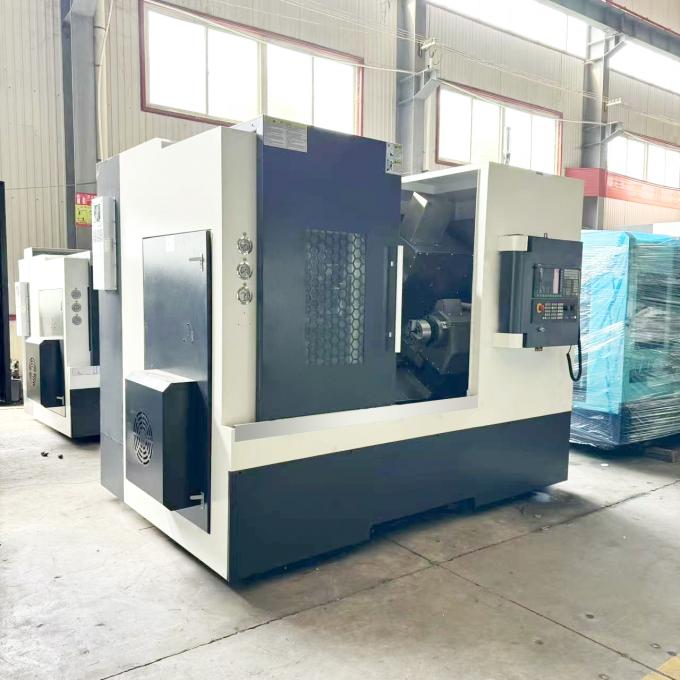

Double Spindle Slant Bed Automatic Cnc Lathe TCK56Y With Sub Spindle Drive Cnc Lathe Turning

Large Image : Double Spindle Slant Bed Automatic Cnc Lathe TCK56Y With Sub Spindle Drive Cnc Lathe Turning

Product Details:

Place of Origin:	china
Brand Name:	HR
Certification:	ceiso
Model Number:	TCK56

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	usd 29000-40000
Packaging Details:	standard export package(plywood case)
Delivery Time:	30days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	40set/month

Contact Now

Double Spindle Slant Bed Automatic Cnc Lathe TCK56Y With Sub Spindle Drive Cnc Lathe Turning

Description

Max Swing Over Bed Dia.（mm）:	Φ630	Maximum Cutting Diameter (mm):	Φ540
X-axis Travel (mm):	280	Y-axis Travel (mm):	±50
Z-axis Travel (mm):	750	X-axis Moving Speed (mm/min):	24000
Spindle Bore (mm):	Φ66	Bar Through-hole(mm):	Φ52
Highlight:	double spindle CNC lathe with sub spindle , slant bed automatic CNC lathe , TCK56Y CNC lathe turning machine

Double Spindle Slant Bed Automatic Cnc Lathe TCK56Y with Sub Spindle Drive Cnc Lathe Turning

Product Introduction

Two axis feed.slant bed cnc turning center lathe machine The whole machine has a compact structure, beautiful appearance, large spindle torque, high rigidity, stable and reliable performance, and excellent accuracy retention. Optimized design of the headstock, suitable for turning of disc and shaft parts. It can process straight, arc, metric and inch threads, and multi-threaded. It is suitable for turning discs and shafts with complex shapes and high precision requirements. Parts Processing.



position	project	TCK56Y
Processing range	Max swing over bed Dia.(mm)	Φ630
	Maximum cutting diameter (mm)	Φ540
	Maximum cutting length (mm)	Power turret 540
Stroke and Feed	X-axis travel (mm)	280
	Y-axis travel (mm)	±50
	Z-axis travel (mm)	750
	X-axis moving speed (mm/min)	24000
	Z-axis moving speed (mm/min)	24000
	Handwheel (mm)	0.001/0.01/0.1
	X, Z feed speed (mm/min)	0~5000
	X, Z manual feed speed (mm/min)	0~1260
Position accuracy	X-axis repeat positioning accuracy (mm)	0.005
	X-axis positioning accuracy (mm)	0.008
	Z-axis repeat positioning accuracy (mm)	0.006
	Z-axis positioning accuracy (mm)	0.008
Spindle	Spindle speed (rpm)	10-3000
	Spindle maximum torque (N.m)	72
	Spindle taper	A2-6
	Spindle bore (mm)	Φ66
	Bar through-hole(mm)	Φ52
	Chuck	10”
tool holder linear guide way	Number of tool holders	12
	Tool change time (s)	0.25
	Tool mounting dimension(mm)	25×25
	Y-axis travel (mm)	±50
	tool holder release/locking time (S)	0.12
	Positioning indexing accuracy	±4"
	Repeat positioning accuracy	±2"
	linear guide way specification	Front 35 ,Rear 25
	Tool speed	6000rpm
	Power tool size	BMT55/ER32
	Maximum weight of turret	300kg
Electric spindle	Spindle taper	A2-5
Electric spindle	Spindle bore (mm)	56mm
	Spindle outer diameter	170mm
Main motor	Main motor power (kw)	11(4500rpm)
Main motor	Main motor torque (N.m)	72
X, Z axis Feed motor	X-axis feed motor power (kw)	2.3
	X-axis feed motor torque (N.m)	15
	Z-axis feed motor power (kw)	2.3
	Z-axis feed motor torque (N.m)	15
Cooling system	Coolant capacity (L)	200
Cooling system	Motor type (1HP) (kw)	0.18
Size	Machine size (length * width * height) (mm)	3400/2060/2100
weight	Machine weight (kg)	5500

Details Images

1. Special structure more stronger 2. Heavy loading capacity 3.Easy metal chips falling down

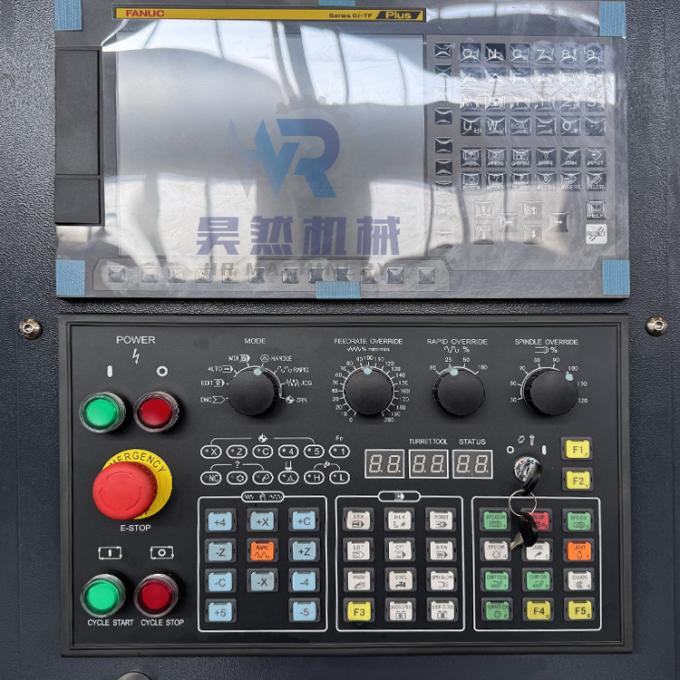

CNC System Optional: Siemens , FANUC ,Syntec GSK Etc.

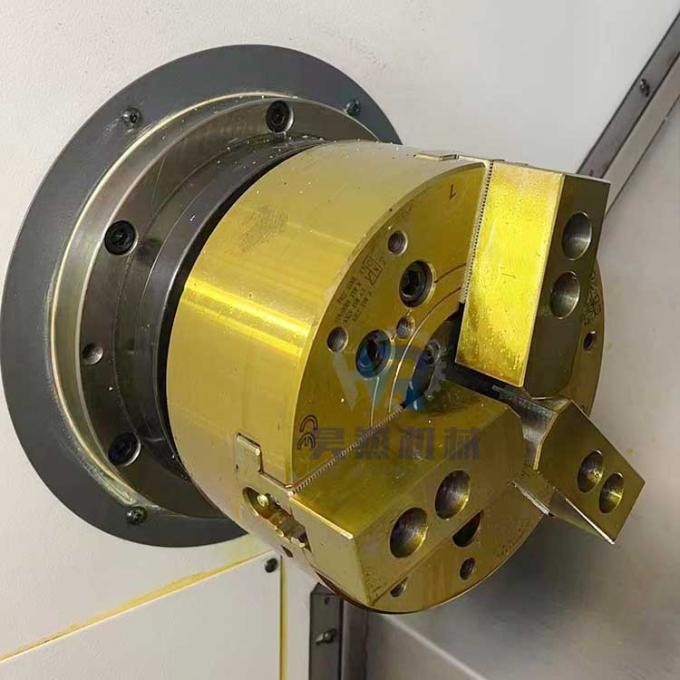

Main spindle

A2-6 main spindle Diameter of spindle through hole: 66mm

Inner diameter of pull through hole: 52mm

Counter spindle

A2-5 counter spindleDiameter of spindle through hole: 52mm

Inner diameter of pull through hole: 40mm

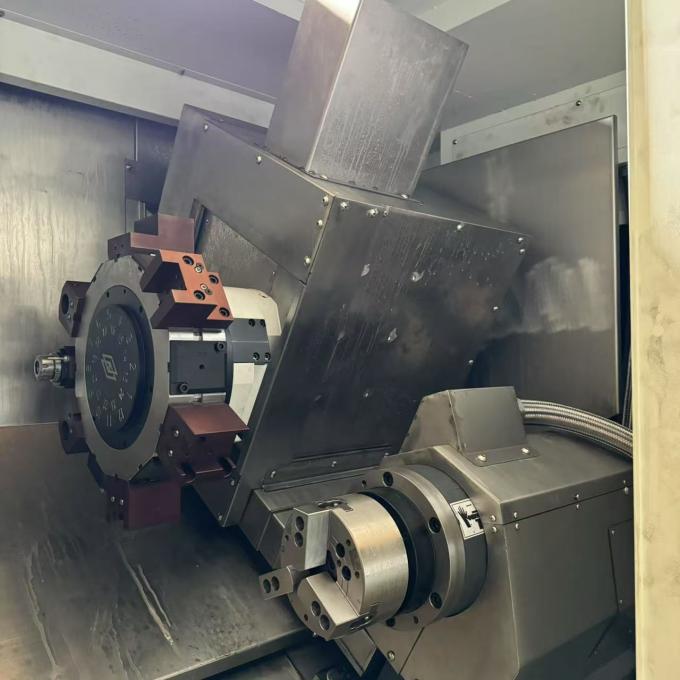

12 stations -power turret, Optional servo turret,

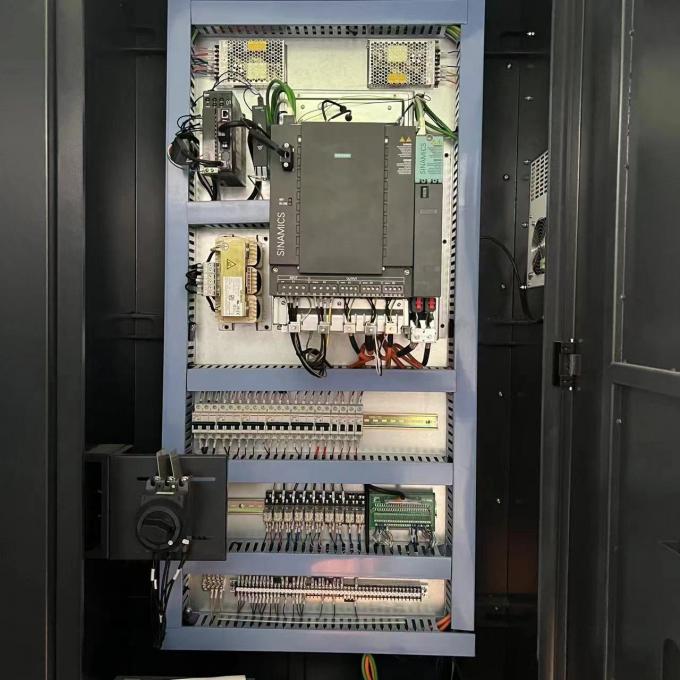

Electric Components

Standard with Schneider

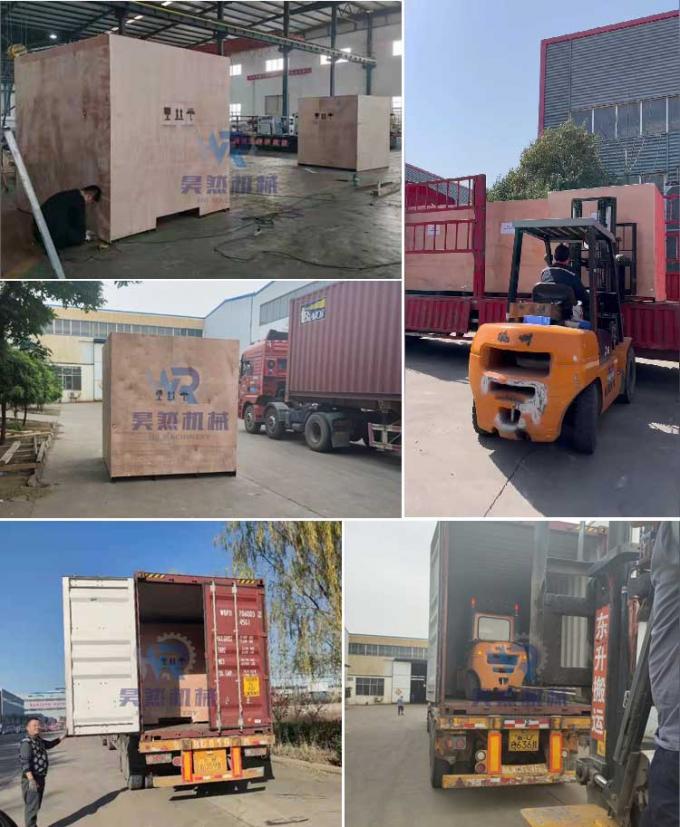

Packing&Shipping

Port: Qingdao port or Shanghai port

Payment method: T/T, L/C, D/P, D/D etc.

Payment: 30% T/T as deposit, 70% balance shall be paid before shipment.

Delivery time: 30 days after receive the 30%T/T deposit.5.Non-fumigation packaging, we use seaworthy plywood.

Steel base plate, it is stronger 3-5 times than normal plywood base plate.

Water-proof and damp proof, water resistant film wraped all the machine.

Fully sheathed case,prevention of collision and keep the goods intact.

Certifications

All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product, please let us know. If you have any other specific requirements, please feel free to contact us. Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.

Customer Photos

We welcome customers to visit the factory, we will let you buy, we will have customers to visit the factory and customers online purchase feedback, through feedback learning experience, continuous progress, better service for you. Shandong HR is willing to unremitting pursuit and efforts, hand in hand with merchants to create a brilliant future
