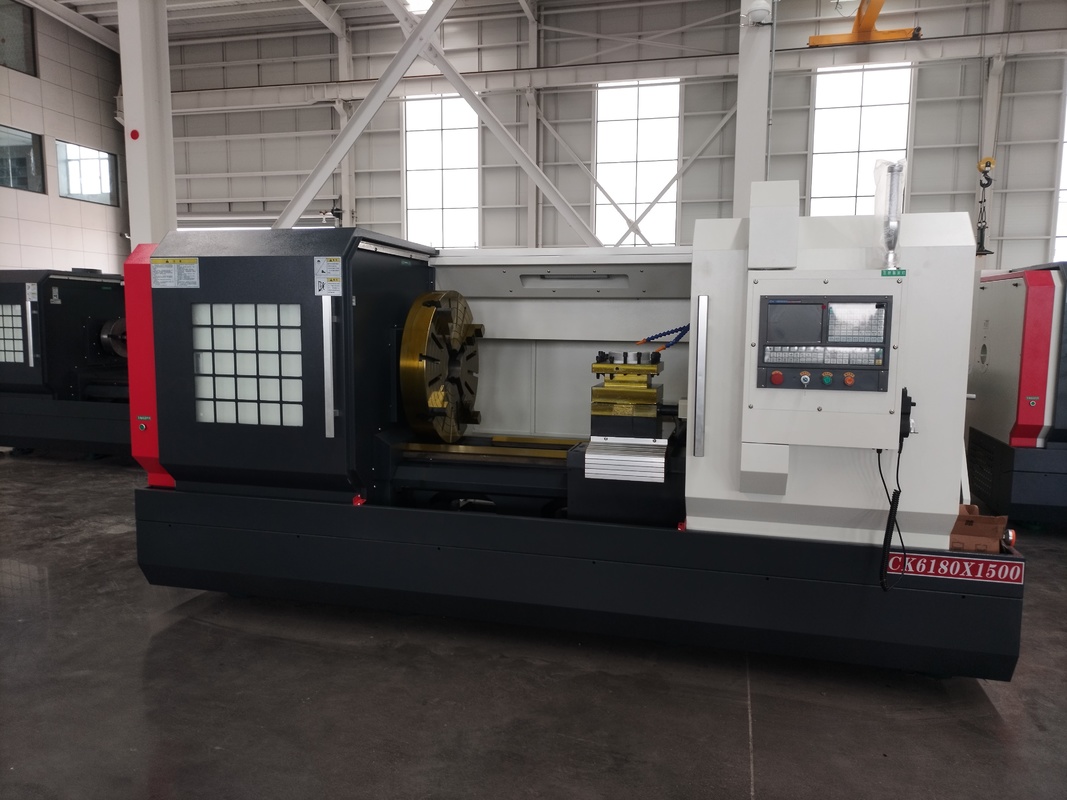

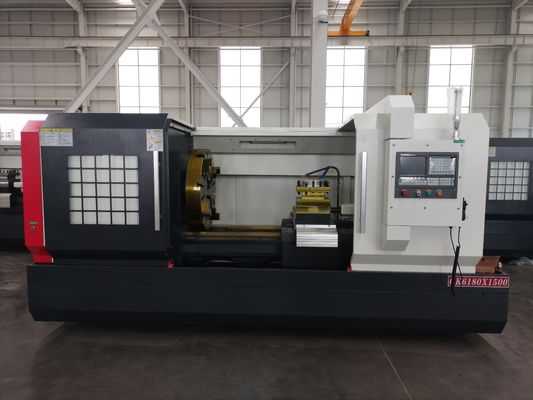

Ck6180 Cnc Lathe Machine 4 Station Turret Optional Chip Conveyor

Large Image : Ck6180 Cnc Lathe Machine 4 Station Turret Optional Chip Conveyor

Product Details:

Place of Origin:	CHINA
Brand Name:	HR
Certification:	CE
Model Number:	CK6180

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	16000USD
Packaging Details:	Plywood Box
Delivery Time:	30 working days
Payment Terms:	T/T, L/C
Supply Ability:	100 sets/month

Contact Now

Ck6180 Cnc Lathe Machine 4 Station Turret Optional Chip Conveyor

Description

Voltage:	3 PHASE 380V 50HZ,110V/220V	Automatic Grade:	Automatic
Power(w):	7.5kw	Condition:	New
Max. Swing Diameter:	800mm	Cnc Or Not:	CNC
Type:	Horizontal,TURNING CENTER	After-sales Service Provided:	Online Support,Video Technical Support
Warranty:	1 Year	Spindle Bore:	105/130
Spindle Speed:	0-835rpm	Color:	Can Be Free To Choose
Machine Type:	Flat Bed Lathe,Horizontal CNC Lathe Mchine
Highlight:	CK6180 CNC lathe machine with 4 station turret , CNC lathe machine with optional chip conveyor , CK6180 CNC lathe with warranty

CNC Lathe use
The machine tool is automatically controlled by the CNC control system to perform various inner holes, outer circles, conical surfaces, arc surfaces, and thread turning. It is especially suitable for rough and fine machining of shafts and disc parts in small and medium batches, with a degree of automation High, simple programming, high precision and other advantages.

Parameter List

Specification:
cnc lathe machine ck6180
Max. swing dia. over bed	800mm
Max. swing dia. over cross slide	450mm
Max. processing length	1000mm
Dia. of spindle	130mm
Spindle taper	MT6
Spindle number	Manual four-speed
Spindle speed	30-84/53-150/125-350/300-835
Tool holder	4-station Electric tool turret
Tool size	32/32
Main motor power	11kw
Spindle head type	A2-11
X/Z axis travel	420/(1000/1500/2000/3000)
X/Z axis lead screw diameter × pitch	φ3208/φ5010
X/Z fast moving speed	4/6
Sleeve diameter/stroke	Φ100/250
Sleeve inner hole taper	MT6
Sleeve drive mode	manual
Tailstock body movement mode	manual
Dimension	3400mm×1940 mm×1800mm
weight	4300kg

Ck6180 Cnc Lathe Machine 4 Station Turret Optional Chip Conveyor 0

Tag:

Contact Person: Yang

Tel: +8618660828360
