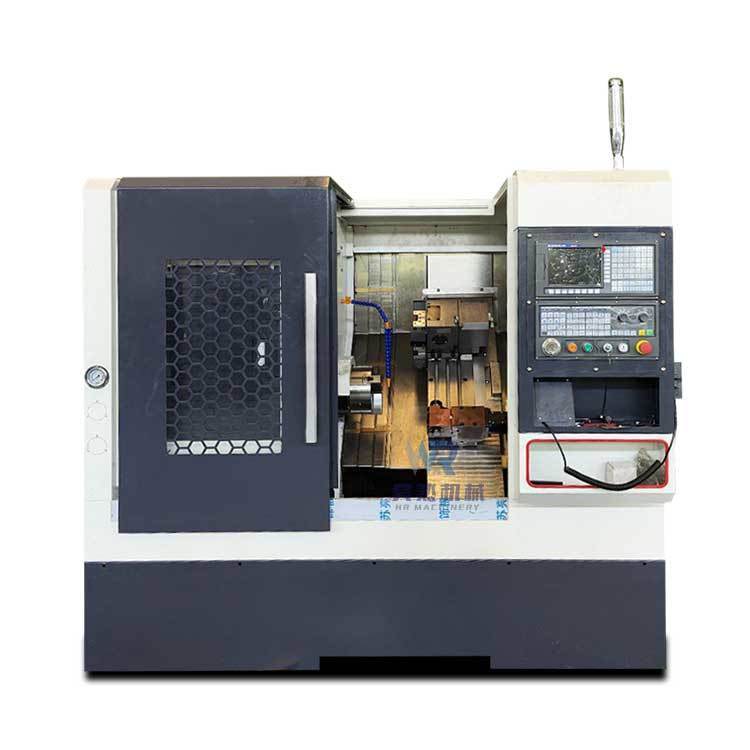

High Quality TCK40 CNC Lathe Horizontal Slant Bed Lathe CNC Turning Machine

Large Image : High Quality TCK40 CNC Lathe Horizontal Slant Bed Lathe CNC Turning Machine

Product Details:

Place of Origin:	china
Brand Name:	HR
Certification:	ceiso
Model Number:	TCK40

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	usd12000-15000
Packaging Details:	standard export package(plywood case)
Delivery Time:	30days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	40set/month

Contact Now

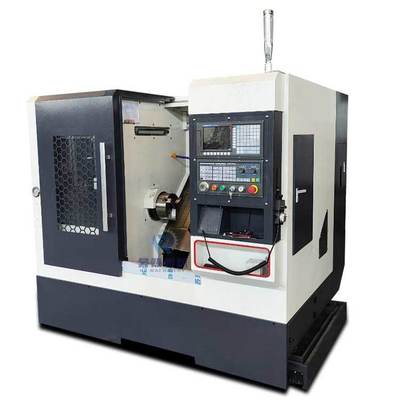

High Quality TCK40 CNC Lathe Horizontal Slant Bed Lathe CNC Turning Machine

Description

Voltage:	380V	Automatic Grade:	Automatic
Power(w):	5.5/7.5kw	Condition:	New
Max. Swing Diameter:	450mm	Weight:	1700kg
Cnc Or Not:	CNC	Type:	Horizontal
Highlight:	TCK40 CNC lathe machine , horizontal slant bed lathe , CNC turning machine with warranty

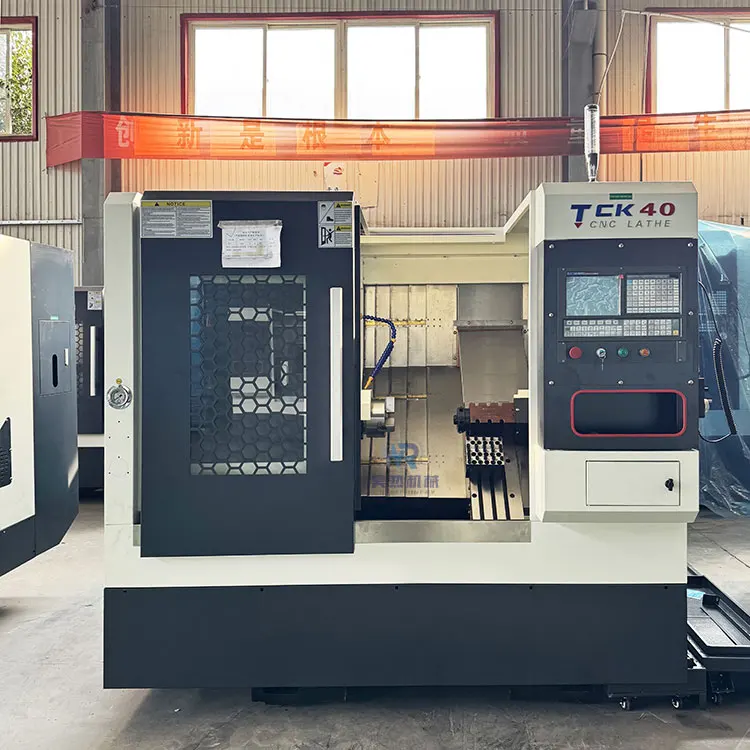

High Quality TCK40 CNC Lathe Horizontal Slant Bed Lathe CNC Turning Machine

Product Introduction

slant bed cnc turning center lathe machine The whole machine has a compact structure, beautiful appearance, large spindle torque, high rigidity, stable and reliable performance, and excellent accuracy retention. Optimized design of the headstock, suitable for turning of disc and shaft parts. It can process straight, arc, metric and inch threads, and multi-threaded. It is suitable for turning discs and shafts with complex shapes and high precision requirements. Parts Processing.



model	tCK40
Max swing over bed Dia.(mm)	Φ450
Maximum cutting diameter(mm)	Φ120
Max cutting length(mm)	335
X axis travel(mm)	900
Z axis travel(mm)	335
X, axis feed speed(mm/min)	24000
Z axis feed speed(mm/min)	24000
handwheel(mm)	0.001/0.01/0.1
X, Z feed speed(mm/min)	0~5000
X, Z manual feed speed(mm/min)	0~1260
Xaxis repeated positioning accuracy(mm)	0.005
X axis positioning accuracy(mm)	0.01
Z axis repeated positioning accuracy(mm)	0.006
Z axis positioning accuracy(mm)	0.015
Spindle speed(rpm)	35-3000
Spindle maximum torque(N.m)	35
Spindle nose	A2-5(OptionalA2-6)
Spindle bore Dia(mm)	Φ52
Hydraulic chuck through hole diameter(mm)	Φ40
Chuck	6”(Optional8”)
No.of tool holder	3 tool rack
Tool change time(s)	0.25
Tools size(mm)	20×20
Boring tool size(mm)	Φ25
Main motor(kw)	5.5 (4500rpm)
Main motor torque(N.m)	35
X-axis feed motor power(kw)	1.5
X-axis feed motor torque(N.m)	6
Z-axis feed motor power(kw)	1.5
Z-axis feed motor torque(N.m)	6
coolant capacity(L)	200
Motor type(1HP)(kw)	0.125
Machine weight(kg)	1600

Details Images

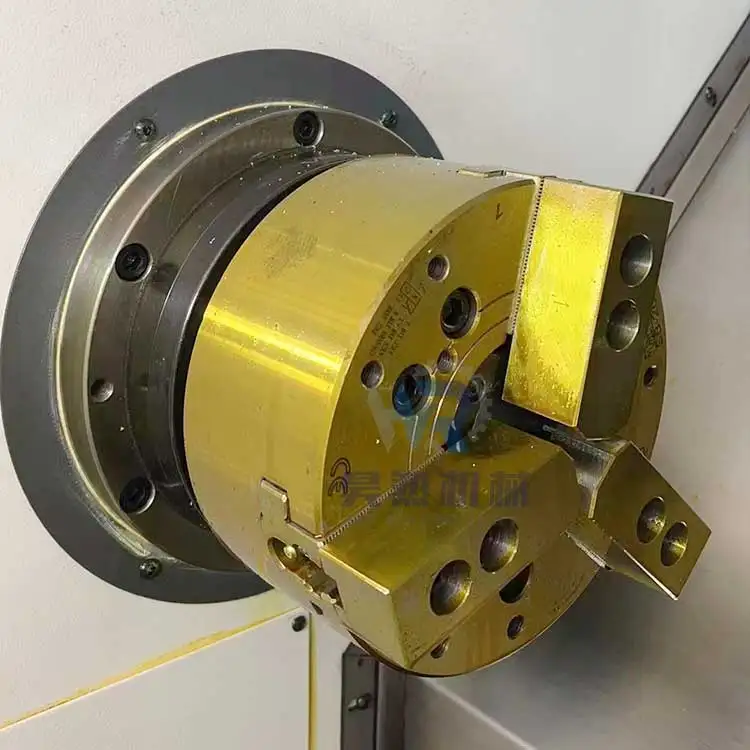

Hydraulic chuck Standard with 8inch hydraulic chuck +soft jaws Optional: 10inch hydraulic chuck

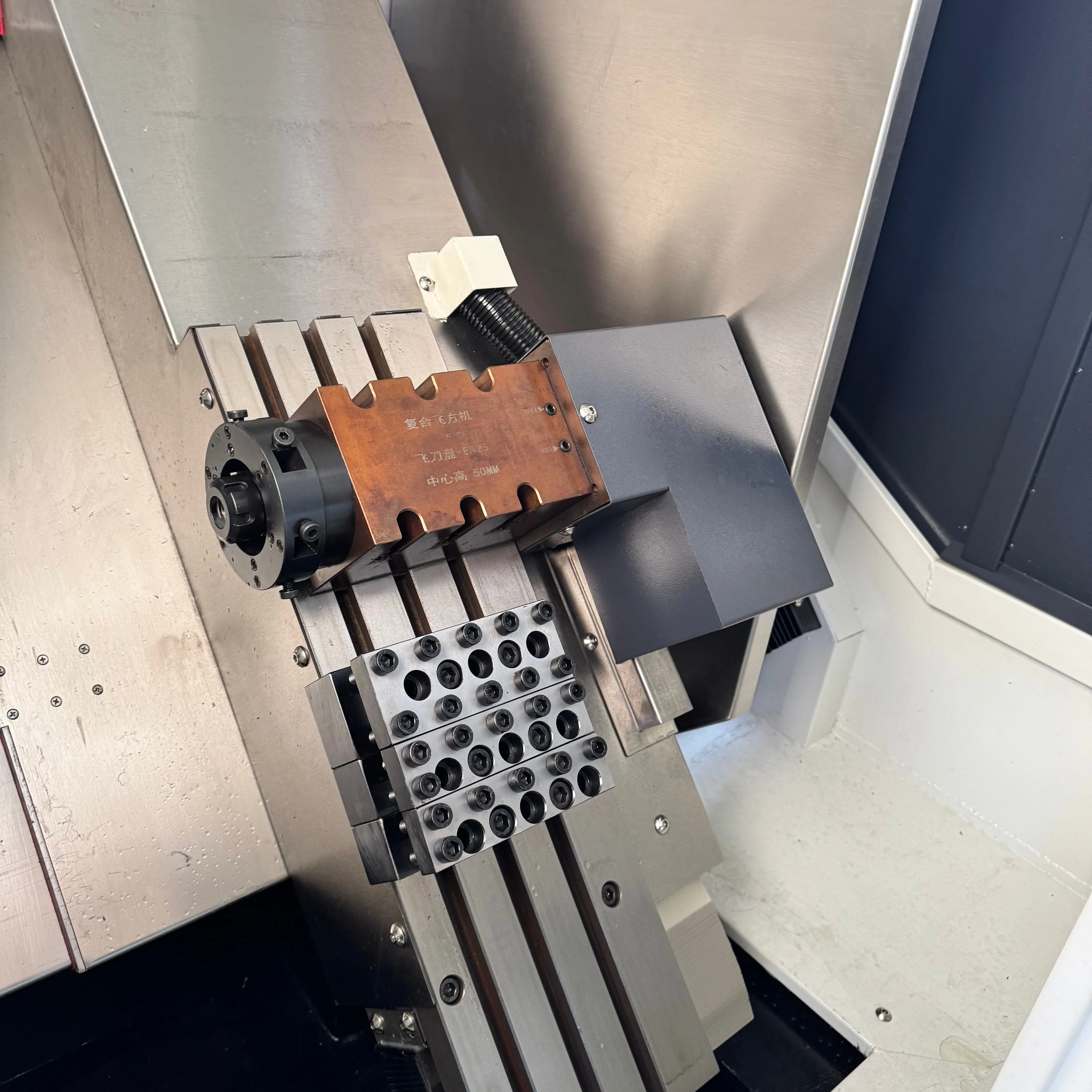

fly -cutter ,tool rack

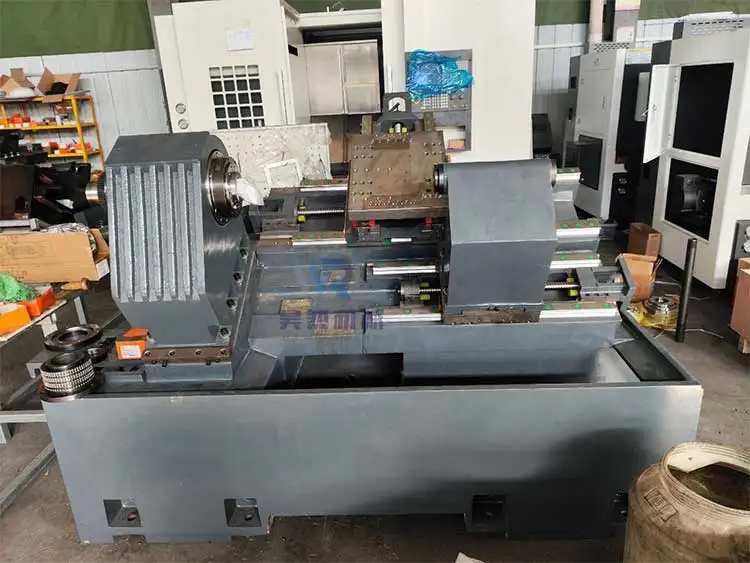

45 Degree Machine structure 1. Special structure more stronger 2. Heavy loading capacity 3.Easy metal chips falling down

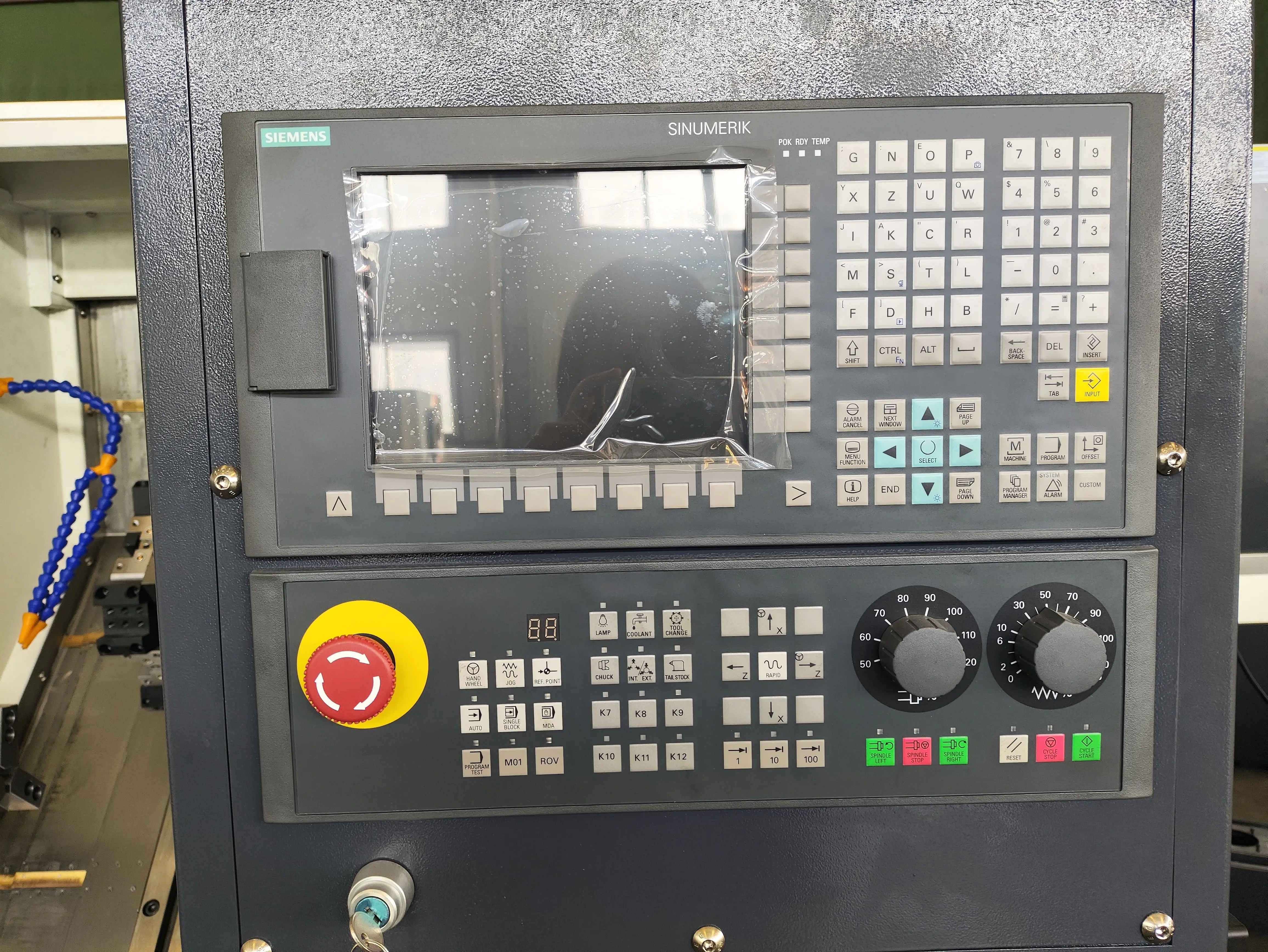

CNC System Standard: Siemens cnc system Optional: GSK , FANUC ,Syntec Etc.
