5HW Turret Head Benchtop Milling Machine For Steel

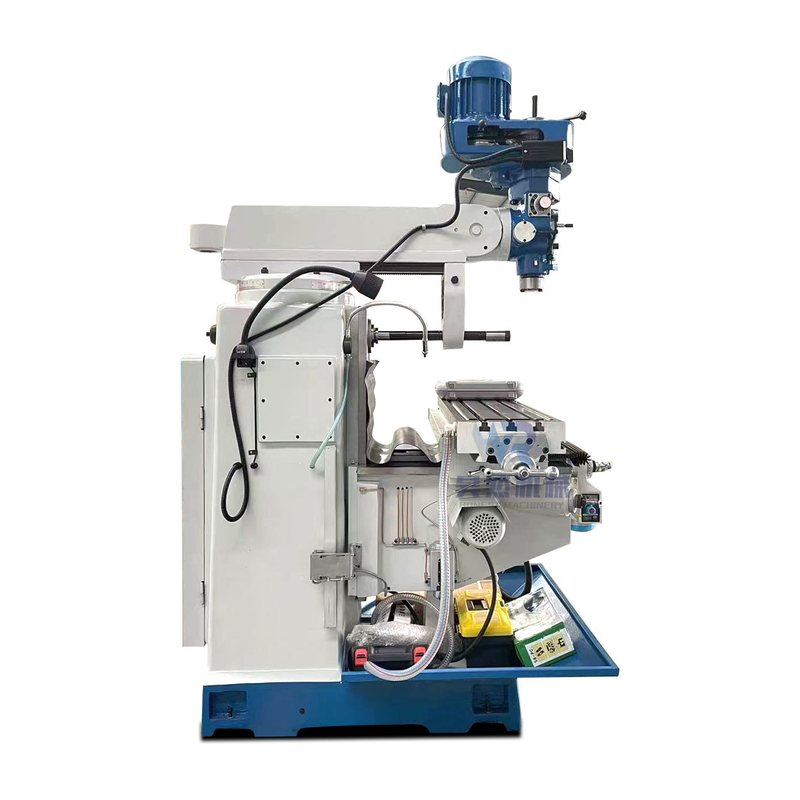

Large Image : 5HW Turret Head Benchtop Milling Machine For Steel

Product Details:

Place of Origin:	china
Brand Name:	HR
Certification:	ce iso
Model Number:	5HW

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	usd5000-10000
Packaging Details:	wooden packing
Delivery Time:	30day
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	40set/month

Contact Now

5HW Turret Head Benchtop Milling Machine For Steel

Description

NAME:	5HW Milling Machine With Taiwan Turret Head	X Axis（mm）:	880-980
Y Axis（mm）:	380-420	Z Axis（mm）:	400-460
Spindle Travel（mm）:	127	Spindle Speed:	16
Workbench Area:	1370*254	Ramp Voltage:	1.1Kw
Highlight:	Turret Head Metal Milling Machine , Benchtop Metal Milling Machine , 5HW benchtop milling machine for steel

5HW Turret Head Benchtop Milling Machine For Steel

Product Description

Specifications	Units	5HW
Table size	mm	1370x305(12”x54”)
Table travel	mm	810/ 400 /400
T slot(number-width-pitch)	mm	3-16-65
Spindle taper		standard:R8 optional:ISO40
Spindle speed range	rpm	standard:16 steps,50HZ:65-4500 ,60HZ:80-5440,Optional:variable 65-4000
Spindle travel	mm	127
Spindle feed range	mm	0.045,0.086,0.142 (3 steps)
Distance between spindle nose and table surface	mm	10-450
Main motor power	kw	2.2
Head rotation (left - right )	°	±90°
Head rotation (front - rear)	°	±45°
Weight	kg	1600
Overall dimension	mm	1550x1650x2250


The main performance characteristics:

M Hanna high strength cast iron, internal honeycomb rib structure, high rigidity, long service life.
Spindle adopts imported from Japan King combination diamond. After the quenching and tempering and frequency processing, after fine grinding with 4 imported bearings (other manufacturers spindle 3 bearing), ensure high quality and high precision.
Three shaft screw fine grinding with advanced phosphor bronze nut, durable.
Horizontal milling with 4 gear shaft speed (other manufacturers for the 2 gear shaft), a wide range of variable speed, torque.
Many parts of the machine tools have been applied for patent

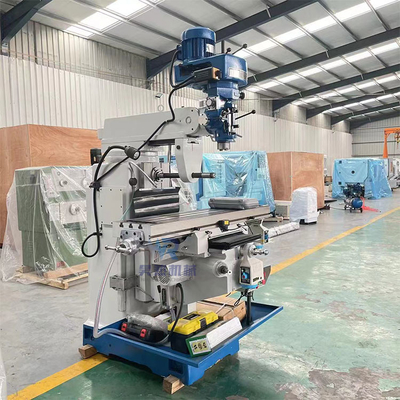

sample

Application:

The milling machine is a kind of universal light duty metal cutting machine, Has two functions of vertical and horizontal milling, Milling medium, small parts of the plane, inclined plane, groove and spline, etc.. Widely used in mechanical processing, mold, equipment, instrumentation and other industries.

Packaging＆Shipping

Packaging Details:

1. Outside package: Standard marine export plywood case.

2. Inner package: Stretchy film and plastic film for humidity. We can package according to your requests. Delivery Detail: Shipped in 20-30 working days after payment.
