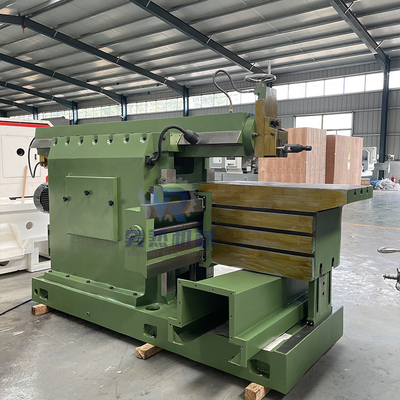

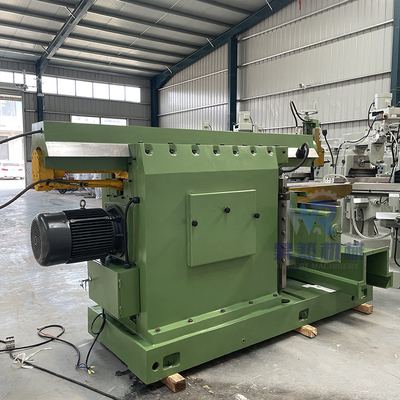

OEM Metal Milling Machine Hydraulic Shaping Machine BY60100

OEM Metal Milling Machine Hydraulic Shaping Machine BY60100
OEM Metal Milling Machine Hydraulic Shaping Machine BY60100 OEM Metal Milling Machine Hydraulic Shaping Machine BY60100 OEM Metal Milling Machine Hydraulic Shaping Machine BY60100

Large Image :  OEM Metal Milling Machine Hydraulic Shaping Machine BY60100

Product Details:
Place of Origin: china
Brand Name: HR
Certification: ceiso
Model Number: BY60100
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: usd4500-6000
Packaging Details: wooden packing
Delivery Time: 30day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 40set/month
Contact Now

OEM Metal Milling Machine Hydraulic Shaping Machine BY60100

Description
Name: Metal Shaper BY60100 Hydraulic Shaping Machine Max. Shaping Length(mm): 1000
Worktable Size (L*W) (mm): 1000*500 Tool Post Travel (mm): 160
Max. Cutting Force: 28000 Main Motor Power (kw): 7.5
Overall Size (L*W*H) (mm): 3615*1574*1760 Net Weight: 4200KG
Highlight:

OEM Metal Milling Machine

,

Hydraulic Metal Milling Machine

,

OEM hydraulic shaping machine



OEM Metal Milling Machine Hydraulic Shaping Machine BY60100



Product Description
OEM Metal Milling Machine Hydraulic Shaping Machine BY60100 0
OEM Metal Milling Machine Hydraulic Shaping Machine BY60100 1
Model
BY60100
Max. Shaping Length(mm)
1000
Distance between Ram Bottom to Worktable
(mm)
80-400
Max. Horizontal Movement of Worktable
(mm)
800
Speed of Ram Travel (Stepless)
(mm/min)
3-44
Worktable Size (L*W) (mm)
1000×500
Tool Post Travel (mm)
160
Horizontal Feed Range of ram per stroke travel (mm)
0.25-5
Max. Cutting Force
28000
Max. Size of Shaping Shank (W*T)
30×45
Worktable Central T-slot (mm)
22
Main Motor Power (kw)
7.5
Worktable Rapid Moving Motor (kw)
(kw)
0.75
Overall Size (L*W*H)
(mm)
3615×1574×1760
Net Weight/Gross Weight (kg)
4200/4350

The main performance characteristics:
It is a general purpose shaping machine, suitable for plane, T groove, dovetail slot shaped surface planing. This machine has the advantages of good rigidity, high working efficiency, low cost and low cost. It is suitable for small and medium spare parts and batch processing. It is the first choice of machine tool.
Packaging＆Shipping
OEM Metal Milling Machine Hydraulic Shaping Machine BY60100 2

Packaging Details:
1. Outside package: Standard marine export plywood case.
2. Inner package: Stretchy film and plastic film for humidity. We can package according to your requests. Delivery Detail: Shipped in 20-30 working days after payment.
Certifications
OEM Metal Milling Machine Hydraulic Shaping Machine BY60100 3

All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product, please let us know. If you have any other specific requirements, please feel free to contact us. Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.
customer visiting
OEM Metal Milling Machine Hydraulic Shaping Machine BY60100 4

We welcome customers to visit the factory, we will have customers to visit the factory and customers online purchase feedback, through feedback learning experience, continuous progress, better service for you.Shandong Honest is willing to unremitting pursuit and efforts, hand in hand with merchants to create a brilliant future
FAQ
1: How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

3: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
