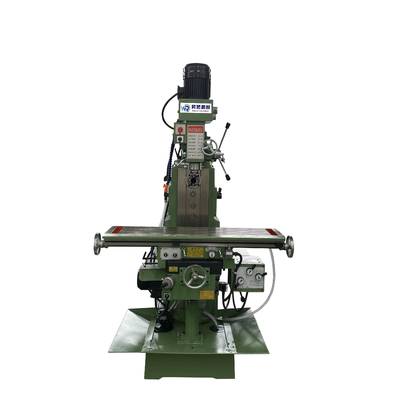

High Precision 3axis Metal Milling Machine Mini Vertical Milling Drilling Machine ZX6350

I'm Online Chat Now

High Precision 3axis Metal Milling Machine Mini Vertical Milling Drilling Machine ZX6350

High Precision 3axis Metal Milling Machine Mini Vertical Milling Drilling Machine ZX6350
High Precision 3axis Metal Milling Machine Mini Vertical Milling Drilling Machine ZX6350 High Precision 3axis Metal Milling Machine Mini Vertical Milling Drilling Machine ZX6350

Large Image :  High Precision 3axis Metal Milling Machine Mini Vertical Milling Drilling Machine ZX6350

Product Details:
Place of Origin: china
Brand Name: HR
Certification: ce iso
Model Number: ZX6350
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: usd3000-6000
Packaging Details: wooden packing
Delivery Time: 30day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 40set/month

High Precision 3axis Metal Milling Machine Mini Vertical Milling Drilling Machine ZX6350

Description
Name: ZX6350 Drilling Milling Machines Universal Milling Machine Maximum Borehole Diameter: 50mm
Max. End Milling Dia.: 100mm Max. Vertical Milling Dia.: 25mm
Max.boring Dia.: 120mm Max. Tapping Dia.: M16mm
Spindle Taper: M.T.4 Table Size: 1200*280mm
Highlight:

ZX6350 Metal Milling Machine

,

3axis Metal Milling Machine

,

3axis mini vertical milling drilling machine



High Precision 3axis Metal Milling Machine Mini Vertical Milling Drilling Machine ZX6350

Product Description
High Precision 3axis Metal Milling Machine Mini Vertical Milling Drilling Machine ZX6350 0
High Precision 3axis Metal Milling Machine Mini Vertical Milling Drilling Machine ZX6350 1
ZX6350
SPECIFICATIONS
Units
Maximum borehole diameter
50
mm
Max. end milling dia.
100
mm
Max. vertical milling dia.
25
mm
Max.boring dia.
120
mm
Max. tapping dia.
M16
mm
Spindle taper
M.T.4

Vertical Spindle nose to table surface distance
90-390
mm
Distance from horizontal shaft center to worktable
0-300
mm
Distance from vertical shaft center to vertical guide rail surface of bed
200-500
mm
Spindle speed range
(8 step)115-1750(V)(12 step)40-1350(H)
r/min
Table size
1200×280
mm
Table travel (longitudinal / transverse / vertical)
X/650 Y/300 Z/430
mm
Distance from horizontal axis center to suspension beam plane
175
mm
Longitudinal / transverse motorized feed speed of workbench
22-555(8 step)810(fast)
mm/min
Vertical motorized lifting speed of workbench
560
mm/min
Number / width / spacing of T-shaped slots on the workbench
3/14/70
mm
Power of main drive motor
1.5/2.2(V);2.2(H)
kW
Power of table motor feed motor
750
w
Lifting table lifting feed motor power
750
w
Cooling pump motor power
40
w
Net weight / gross weight of machine tool
1450/1560
kg
overall dimension
1680×1480×2250
mm


The drilling and Milling Machine advantage :

1. Three axis hardened treatment, high rigidity.

2. vertical horizontal multi-functional ,drilling ,milling, boring operation.

3. X axis mechanical feed,Y.Z axis can be added the device

4. Gear transmission milling head, stable transmission, compact structure ,easy maintenance, easy to operate



The main feature:

1. Uses standardized assemblies from the VH milling machine universal use as milling machines and drill press

2. Easily shiftable gear drive ensures power transmission without losses

3. With V-belt spindle drive and gear spindle drive

4. Head swivels into the horizontal level on both sided via crank and toothed gear, easy activation of manual micro-feed for the spindle quill

Company information
High Precision 3axis Metal Milling Machine Mini Vertical Milling Drilling Machine ZX6350 2

Shandong Honest control machine tool Co., Ltd. is a production-oriented enterprise with import and export rights. The company is equipped with many kinds of machine tools and equipment, including nearly 100 sets of large, fine and sophisticated equipment. The enterprise has 100 employees at present, including more than 10 engineers and dozens of workers and technicians. The company has been insisting on staff training for many years, through changing staff concepts, implementing enterprise reform, introducing new management concepts and methods, using modern management level. The company has hundreds of sales outlets, more than one sales branch or office, 30 provinces, cities, autonomous regions. In Europe, South America, Asia, Hong Kong and other countries and regions have long-term cooperation dealers. In recent years, the company insists on changing the mode and adjusting the structure; Implement brand strategy and expand foreign market; Control the manufacturing level of company equipment. Formed by CNC lathe, CNC milling machine, vertical machining center, gantry machining center, CNC metal band sawing machine, drilling and milling machine series, milling machine series, turret milling machine series, more than ten categories, hundreds of varieties of production scale. It has achieved the expected goal of CNC product serialization and characteristic product individuation, and formed its own brand while meeting the personalized needs of users.
Packaging&Shipping
High Precision 3axis Metal Milling Machine Mini Vertical Milling Drilling Machine ZX6350 3

Packaging Details:
1. Outside package: Standard marine export plywood case.
2. Inner package: Stretchy film and plastic film for humidity. We can package according to your requests. Delivery Detail: Shipped in 20-30 working days after payment.
Certifications
High Precision 3axis Metal Milling Machine Mini Vertical Milling Drilling Machine ZX6350 4

All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product, please let us know. If you have any other specific requirements, please feel free to contact us. Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.
customer visiting
High Precision 3axis Metal Milling Machine Mini Vertical Milling Drilling Machine ZX6350 5

We welcome customers to visit the factory, we will have customers to visit the factory and customers online purchase feedback, through feedback learning experience, continuous progress, better service for you.Shandong Honest is willing to unremitting pursuit and efforts, hand in hand with merchants to create a brilliant future
FAQ
1: How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe
Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight
