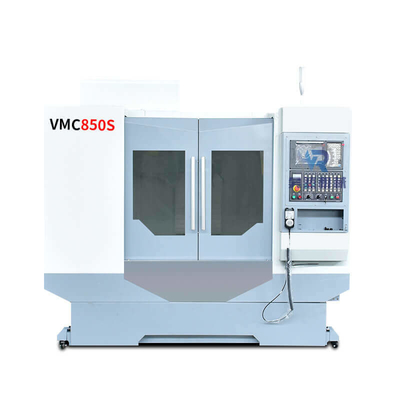

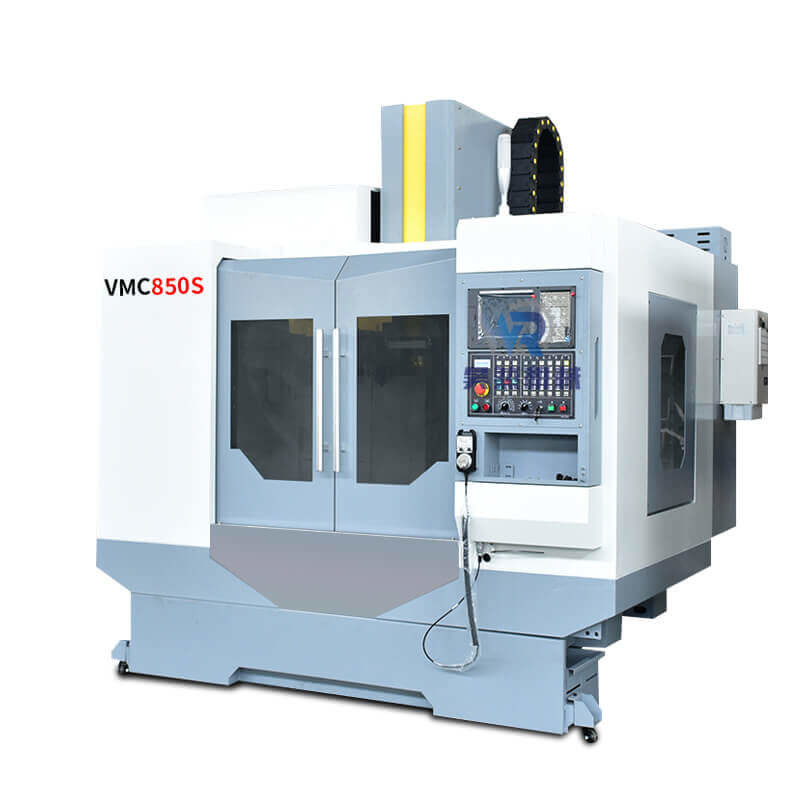

Vertical Vmc850s CNC Milling Center Machine 3axis Multi Spindle Unit For Metal

Large Image : Vertical Vmc850s CNC Milling Center Machine 3axis Multi Spindle Unit For Metal

Product Details:

Place of Origin:	china
Brand Name:	HR
Certification:	ceiso
Model Number:	vmc850s

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	19000-40000usd
Packaging Details:	wooden packing
Delivery Time:	30day
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	40set/month

Contact Now

Vertical Vmc850s CNC Milling Center Machine 3axis Multi Spindle Unit For Metal

Description

Table Size (mm):	1000*500	Max. Allowable Load (Kg):	500
X-axis Stroke (mm):	800	Y-axis Travel (mm):	500
Z-axis Travel (mm):	500	T-slot:	5-18-108
Spindle Taper Hole:	BT40-140	Spindle Speed (r/min):	8000
Highlight:	Vmc850s CNC Milling Center , Multi Spindle CNC Milling Center , 3axis multi spindle cnc milling machine

Vertical Vmc850s CNC Milling Center Machine 3axis Multi Spindle Unit For Metal

Model	VMC650	VMC840	VMC850s	VMC855
Table size (mm)	1000*400	1000*400	1000*500	1000*550
Max. allowable load (Kg)	400	300	500	500
X-axis stroke (mm)	650	800	800	800
Y-axis travel (mm)	400	400	500	550
Z-axis travel (mm)	550	550	500	550
T-slot	3-18-120	3-18-140	5-18-108	5-18-90
spindle center to Z-axis guide surface (mm)	485	445	552	590
spindle end face to work table (mm)	100-650	100-650	110-610	120-670
Spindle taper hole	BT40-120	BT40-120	BT40-140	BT40-150
Spindle speed (r/min)	8000	8000	8000	8000
X/Y/Z rapid movement (m/min)	48/48/48	30/30/18	48/48/48	48/48/48
Machine Weight (Kg)	3800	3200	5300	5500

Model	VMC966 I	VMC1050	VMC1160	VMC1165
Table size (mm)	1100*550	1200*420	1200*600	1200*600
Max. allowable load (Kg)	600	500	800	800
X-axis stroke (mm)	900	1000	1100	1100
Y-axis travel (mm)	600	500	600	650
Z-axis travel (mm)	600	550	600	650
T-slot	5-18-100	5-18-100	5-18*100	5-18-100
spindle center to Z-axis guide surface (mm)	663	575	650	710
spindle end face to work table (mm)	100-700	100-650	120-720	120-720
Spindle taper hole	BT40-150	BT40-150	BT40-150	BT40-150
Spindle speed (r/min)	8000	8000	8000	8000
X/Y/Z rapid movement (m/min)	48/48/48	18/18/18	36/36/24	36/36/36
Machine Weight (Kg)	5600	5500	6500	6800

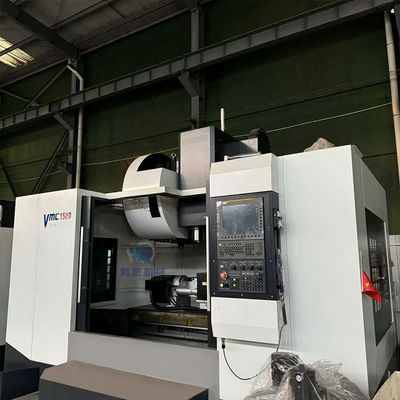

Model	VMC1270	VMC1370	VMC1580
Table size (mm)	1200*700	1400*700	1700*800
Max. allowable load (Kg)	800	800	1500
X-axis stroke (mm)	1200	1300	1500
Y-axis travel (mm)	700	700	800
Z-axis travel (mm)	700	750	700
T-slot	5-18-130	5-18-130	5-22-135
spindle center to Z-axis guide surface (mm)	710	713	855
spindle end face to work table (mm)	120-770	120-870	160-860
Spindle taper hole	BT40-150	BT40-150	BT50-155
Spindle speed (r/min)	8000	8000	6000
X/Y/Z rapid movement (m/min)	36/36/36	24/24/24	24/24/18
Machine Weight (Kg)	7000	8000	12000


Vertical machining center The span of y-axis guide rail is maximized, the gravity overturning phenomenon caused by X-axis movement is eliminated, and the operation stability of the machine tool is ensured

Product Details

Taiwan HIWIN high precison guideway Taiwan-made spindle Unit,8000-12000rpm available.Reliable Control System: vmc850s cnc milling machine machining center is suitable for producing metal product and parts in all shapes. Taiwan spindle adopts high-quality bearings with good rigidity. BT40 tool handle is standard and BT40 tool handle is optional.HT300 cast iron is adopted for the main foundation parts such as base, sliding seat, workbench, column and headstock; vmc850s cnc milling machine

Taiwan spindle ensures high-speed cutting. The water outlet function of the spindle center has good chip removal effect and good cooling effect, which improves the processing quality

Taiwan HIWIN high precison guideway

Automatic tool change system

Casting customers are assured of machinery and precision testing

Packaging＆Shipping

Packaging Details: 1. Outside package: Standard marine export plywood case. 2. Inner package: Stretchy film and plastic film for humidity. We can package according to your requests. Delivery Detail: Shipped in 30 working days after payment.

Certifications

All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product, please let us know. If you have any other specific requirements, please feel free to contact us. Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.

Tag:

vmc vertical machining center,

horizontal cnc milling machine,

mini vmc machine

Contact Details

Shandong HR Machinery Co., Ltd.

Contact Person: Yang

Tel: +8618660828360

Other Products

5th Axis Metal Vertical Machining CNC Milling Center VMC 850S

Warranty: 1 Year

Weight: 4800kg

Condition: New

Type: Vertical

Vmc650 Industrial CNC Milling Machine Center 4 Axis VMC Machine High Performance

name: 3 Axis CNC Machine Price VMC650 CNC Vertical Machining Center

Number of Axes: 3

Machining Capacity: Medium Duty

Range of Spindle Speed(r.p.m): 8000 - 12000

Vmc966 Multi Spindle CNC Milling Machine Traveling Column Vertical Machining Center

Model: VMC966

Table size (mm): 1100*550

Max. allowable load (Kg): 600

X-axis stroke (mm): 900

VMC855 Vertical Machining CNC Milling Center 4 Axis VMC Machine 8000rpm

Model: VMC855

Warranty: 1 Year

Condition: New

Type: Vertical

4 Axis VMC850 Vertical Industrial CNC Milling Machine Machining Center With KND Controller

name: 4 axis VMC850 CNC Machining Center Vertical Milling Machine Center with KND Controller

Number of Axes: 4

Machining Capacity: Medium Duty

Range of Spindle Speed(r.p.m): 8000 - 12000

Vertical Vmc850s CNC Milling Center Machine 3axis Multi Spindle Unit For Metal

CNC Vertical Machining Center

CNC Vertical Milling Machine

CNC VMC Machine

VMC CNC Milling Machine

CNC Milling Center

Universal Milling Machine

VMC Machining Center

Vertical Milling Center

Metal Milling Machine

4 Axis VMC Machine

5 Axis Machining Center

CNC Lathe Machine

Vertical Vmc850s CNC Milling Center Machine 3axis Multi Spindle Unit For Metal

Vertical Vmc850s CNC Milling Center Machine 3axis Multi Spindle Unit For Metal

Vmc850s CNC Milling Center

Multi Spindle CNC Milling Center

3axis multi spindle cnc milling machine

vmc vertical machining center,

horizontal cnc milling machine,

mini vmc machine

5th Axis Metal Vertical Machining CNC Milling Center VMC 850S

Vmc650 Industrial CNC Milling Machine Center 4 Axis VMC Machine High Performance

Vmc966 Multi Spindle CNC Milling Machine Traveling Column Vertical Machining Center

VMC855 Vertical Machining CNC Milling Center 4 Axis VMC Machine 8000rpm

4 Axis VMC850 Vertical Industrial CNC Milling Machine Machining Center With KND Controller

CNC Vertical Machining Center

High Speed 4 Axis CNC Vertical Machining Center For Aerospace Parts

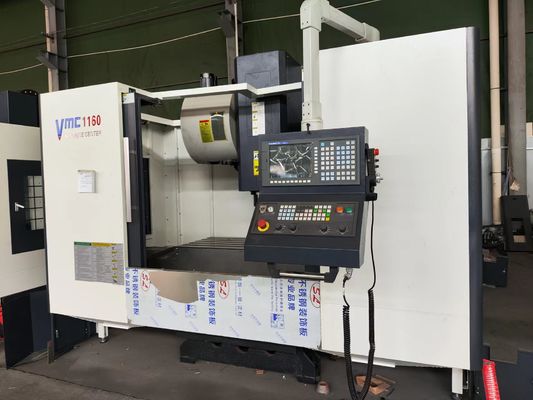

3axis CNC Vertical Machine Center VMC1160 For Small Batch Products

Honest CNC Vertical Machining Center VMC 650 CNC High Precision

CNC Vertical Milling Machine

Custom Vmc850 CNC Vertical Milling Machine Service Center For Metal

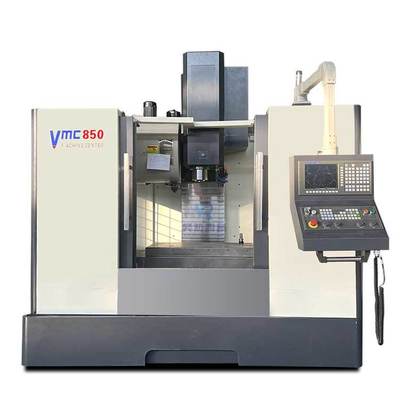

Mechanical CNC 3 Axis Metal Milling Machine VMC850 Vertical Machining Center
