4axis CNC Vertical Machining Center Vmc 850 Milling Machine

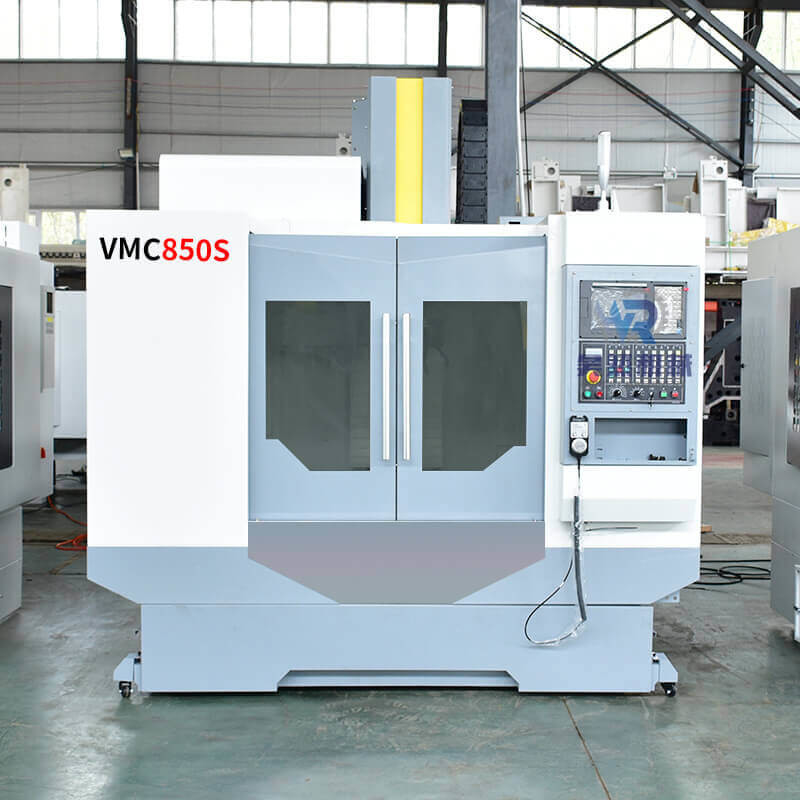

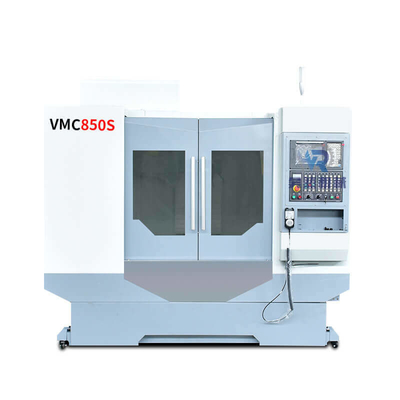

Large Image : 4axis CNC Vertical Machining Center Vmc 850 Milling Machine

Product Details:

Place of Origin:	china
Brand Name:	HR
Certification:	ceiso
Model Number:	vmc850s

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	usd19000-40000
Packaging Details:	wooden packing
Delivery Time:	30day
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	40set/month

Contact Now

4axis CNC Vertical Machining Center Vmc 850 Milling Machine

Description

Table Size (mm):	1000*500	Max. Allowable Load (Kg):	500
X-axis Stroke (mm):	800	Y-axis Travel (mm):	500
Z-axis Travel (mm):	500	Warranty:	1 Year
Condition:	New	Type:	Vertical
Highlight:	4axis CNC Vertical Machining Center , CNC Vertical Machining Center vmc850 , 4 axis vmc 850 milling machine

4axis CNC Vertical Machining Center Vmc 850 Milling Machine

Product Paramenters

Model	VMC650	VMC840	VMC850	VMC855	VMC966 I
Table size (mm)	1000x400	1000x400	1000x500	1000x550	1100x550
Max. allowable load (Kg)	400	300	500	500	600
X-axis stroke (mm)	650	800	800	800	900
Y-axis travel (mm)	400	400	500	550	600
Z-axis travel (mm)	550	550	500	550	600
T-slot	3-18-120	3-18-140	5-18-108	5-18-90	5-18-100
spindle center to Z-axis guide surface (mm)	485	445	552	590	663
spindle end face to work table (mm)	100-650	100-650	110-610	120-670	100-700
Spindle taper hole	BT40-120	BT40-120	BT40-140	BT40-150	BT40-150
Spindle speed (r/min)	8000	8000	8000	8000	8000
X/Y/Z rapid movement (m/min)	48/48/48	30/30/18	48/48/48	48/48/48	48/48/48
Machine Weight (Kg)	3800	3200	5300	5500	5600

Model	VMC1050	VMC1160	VMC1165	VMC1265 I	VMC1370 I	VMC1580
Table size (mm)	1200x420	1200x600	1200x600	1200x600	1400x700	1700X800
Max. allowable load (Kg)	500	800	800	800	800	1500
X-axis stroke (mm)	1000	1100	1100	1200	1300	1500
Y-axis travel (mm)	500	600	650	650	700	800
Z-axis travel (mm)	550	600	650	650	750	700
T-slot	5-18-100	5-18x100	5-18-100	5-18-100	5-18-130	5-22-135
spindle center to Z-axis guide surface (mm)	)575	650	710	710	713	855
spindle end face to work table (mm)	100-650	120-720	120-720	120-770	120-870	160-860
Spindle taper hole	BT40-150	BT40-150	BT40-150	BT40-150	BT40-150	BT50-155
Spindle speed (r/min)	8000	8000	8000	8000	8000	6000
X/Y/Z rapid movement (m/min)	18/18/18	36/36/24	36/36/36	36/36/36	24/24/24	24/24/18
Machine Weight (Kg)	5500	6500	6800	7000	8000	12000

Product Description1.The fuselage and main components are high strength cast iron, microstructure stability, ensure the stability of machine tool for long-term use. 2.The column at the bottom of A type bridge type structure, combined with the big box base, greatly reduce the vibration of machine on heavy cutting 3.The pre tension precision ball screw drive 4.The high speed, high precision, high rigidity spindle unit

Application:

This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing

requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling,tapping,boring ,etc.

Product Advantages

The advantages of CNC Vertical Milling Machine

CNC Vertical Machining Centers can include an additional axis to do specific cutting applications.

Rotary Tables are common as a 4th Axis on mills. They can vary in size and weight capacities and can have a horizontal or vertical configuration. They are generally an add-on to a standard 3-axis mill. The mill will have to have a proper 4th axis interface (generally a 4th axis card, drive and CNC Control) to accept a 4th axis rotary table.

Trunnion Tables can also be an add-on to a vertical CNC Mill. A Trunnion table adds a 4th and 5th axis to a standard mill by incorporating an A-Axis (which rotates around the X-Axis) as well as a C-Axis (which rotates around the Z Axis).

Application Example

The vertical machining center can be applied to many fields such as mechanical processing and mould manufacturing, can adapt from roughing to finishing processing requirements, has the characteristics of high precision, high eficiency, is widely used in aerospace, military industry, mould, automobile, internal combustion engines, textile machinery, chemical machinery processing, oil, electronics and other

industries.

Machine detection

Packaging＆Shipping

1. Outside package: Standard marine export plywood case.2. Inner package: Stretchy film and plastic film for humidity. We can

package according to your requests. Delivery Detail: Shipped in 15-30 working days after payment.
